Figure 3 from Fine Structure of a Solar Type II Radio Burst Observed by LOFAR

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF

Fine Structure of a Solar Type II Radio Burst Observed by LOFAR

Authors: Jasmina Magdalenić, Christophe Marqué, Richard A. Fallows, Gottfried Mann, Christian Vocks, Pietro Zucca, Bartosz P. Dabrowski, Andrzej Krankowski, and Valentin Melnik

2020 The Astrophysical Journal Letters 897 L15.

Provider: AAS Journals

Caption: Figure 3.

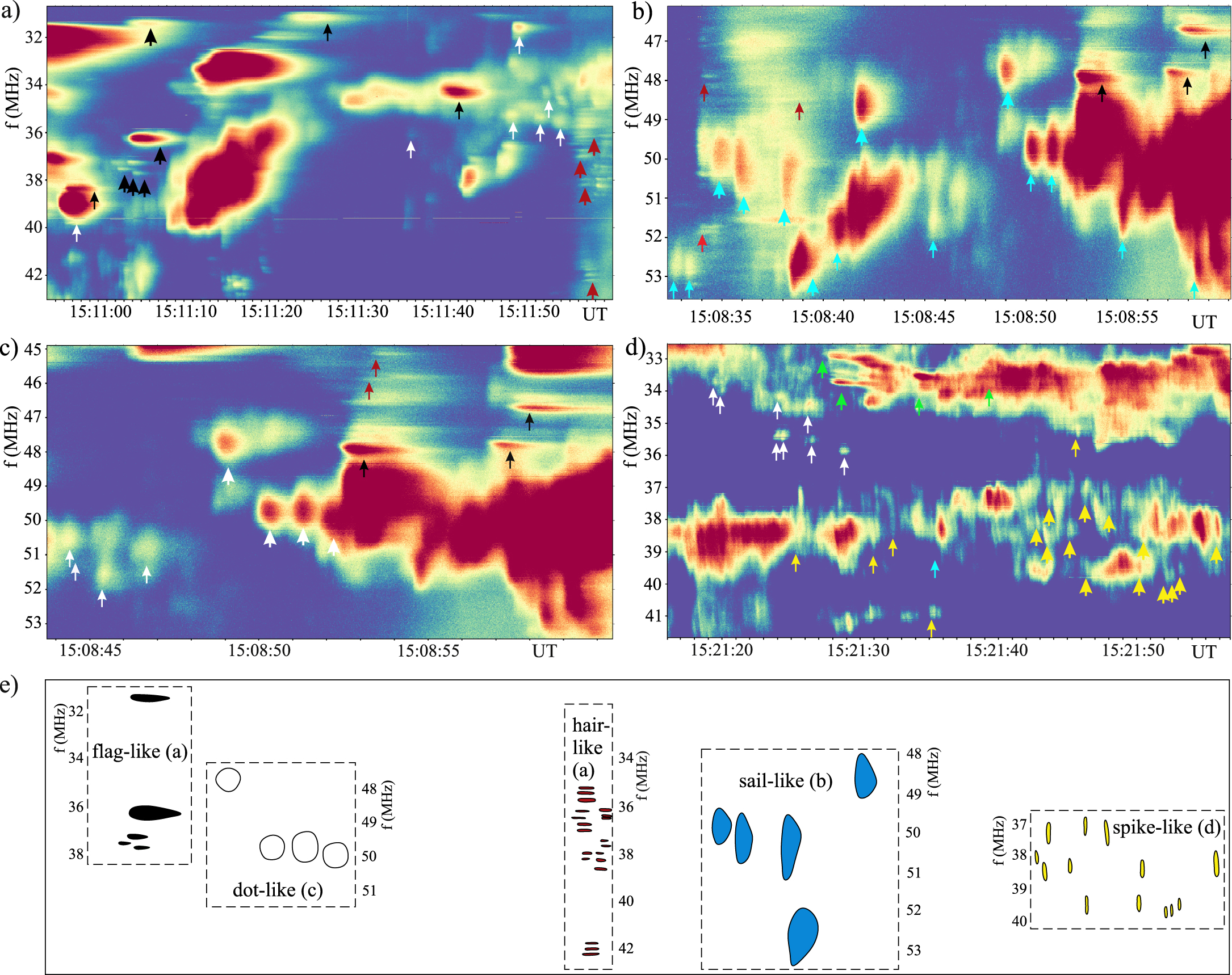

Panels (a)–(d) show LOFAR dynamic spectra of different narrowband FSs in the type II burst. In all dynamic spectra flag-like bursts are denoted with thick black arrows, dot-like with white, sail-like with blue, hair-like with red, and spike-like with yellow arrows. (e) One-to-one schematic presentation of selected groups of FSs presented in panels (a)–(d).
