SuNeRF-CME: Physics-informed Neural Radiance Fields for Tomographic Reconstruction of Coronal Mass Ejections

  • Authors: Robert Jarolim, Martin Sanner, Chia-Man Hung, Emma Stevenson, Hala Lamdouar, Josh Veitch-Michaelis, Ioanna Bouri, Anna Malanushenko, Elena Provornikova, Vít Růžička, Carlos Urbina-Ortega

Robert Jarolim et al 2026 The Astrophysical Journal 1004 .

  • Provider: AAS Journals

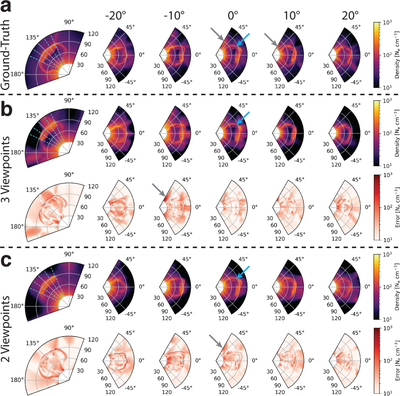

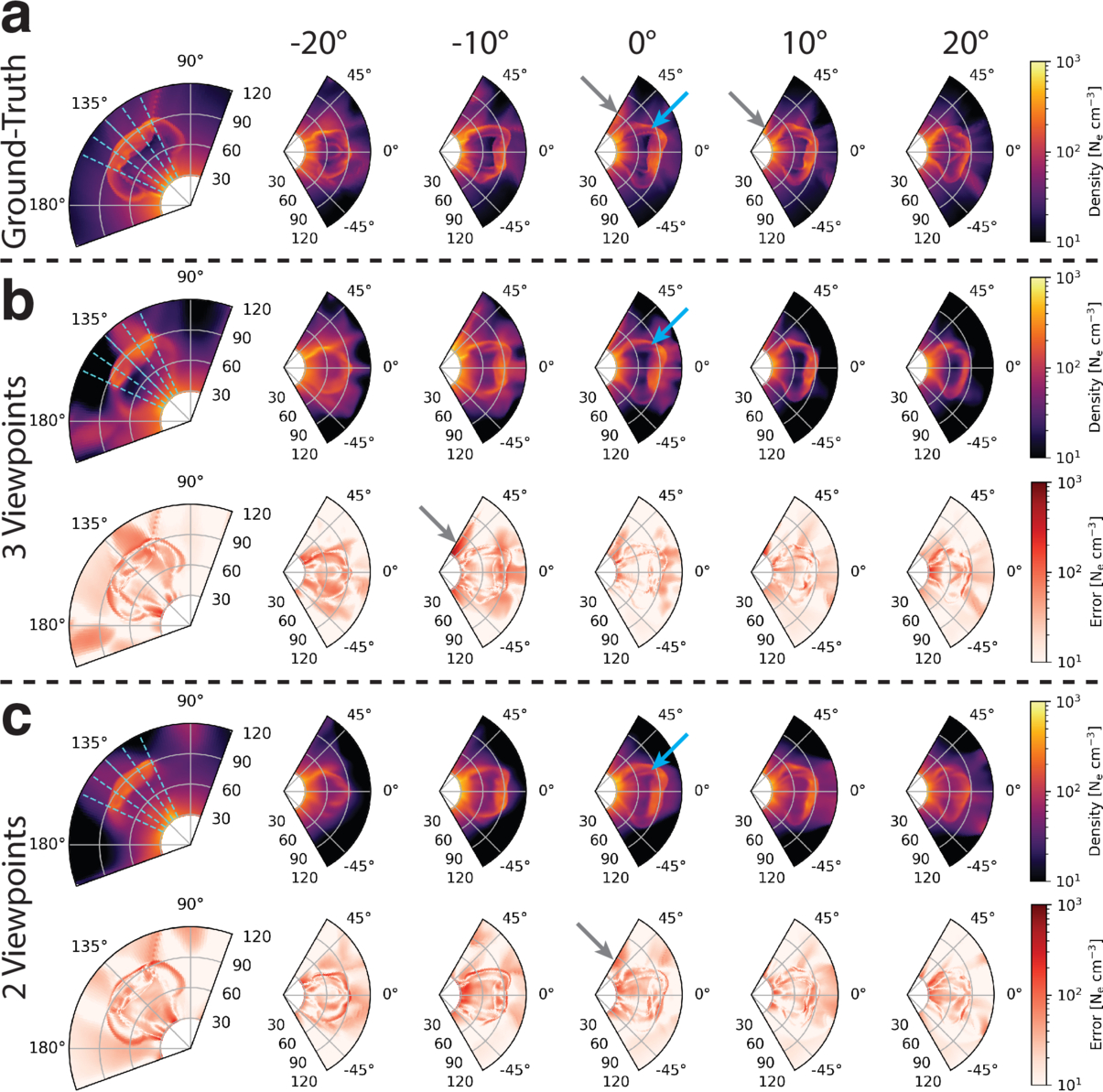

Caption: Figure 5.

Tomographic reconstruction of a CME from three and two viewpoints. (a) Ground-truth electron density slices in the ecliptic plane and at 135°longitude; the blue dashed lines indicate the locations of the latitudinal slices. (b) Reconstructed slices from a three-viewpoint configuration and corresponding difference maps relative to the ground truth. (c) The same as panel (b), but for a two-viewpoint reconstruction. The comparison highlights that the CME morphology can be reconstructed with a high degree of fidelity even from a sparse set of observations.
