High-resolution X-Ray Spectroscopy of the Nova-like Cataclysmic Variable BZ Cam Using Chandra HETG: Diagnosis of the ADAF-like (Advective) Hot Flow

  • Authors: Şölen Balman, Eric M. Schlegel, Patrick Godon, Jeremy J. Drake, Edward M. Sion

Şölen Balman et al 2026 The Astrophysical Journal 1003 .

  • Provider: AAS Journals

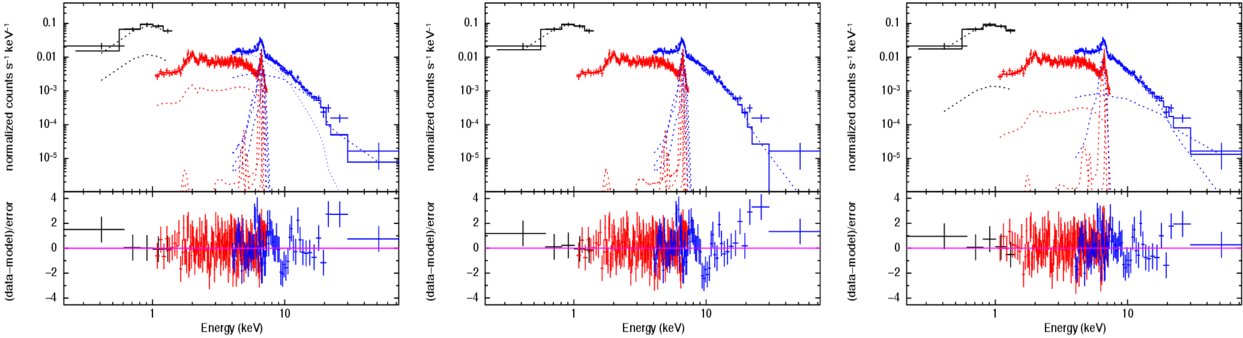

Caption: Figure 3.

Fits to the joint ROSAT, Chandra zero-order, and NuSTAR spectra of BZ Cam. All three spectra are fit simultaneously with the model, tabs × zxipcf ×GABS×GABS×GABS(-BREMSS+power+GAUSS+GAUSS+GAUSS) on the left. The middle panel shows the same fitted joint spectra without the inclusion of the power-law model (notice the excess beyond 10 keV). The right-hand panel shows the same spectra using the composite model tbabs × zxipcf ×GABS×GABS×GABS(VNEI+power+GAUSS+GAUSS). The dotted lines show the contribution of different model components, where the residuals in standard deviations (in sigmas) are displayed in the lower panels.
