A Three-dimensional Model for the Reversal in the Local Large-scale Interstellar Magnetic Field

Authors: Rebecca A. Booth, Anna Ordog, Jo-Anne Brown, T. L. Landecker, Alex S. Hill, Jennifer L. West, Minjie Lei, S. E. Clark, Andrea Bracco, John M. Dickey, Ettore Carretti

Rebecca A. Booth et al 2026 The Astrophysical Journal 997 .

Provider: AAS Journals

Caption: Figure 8.

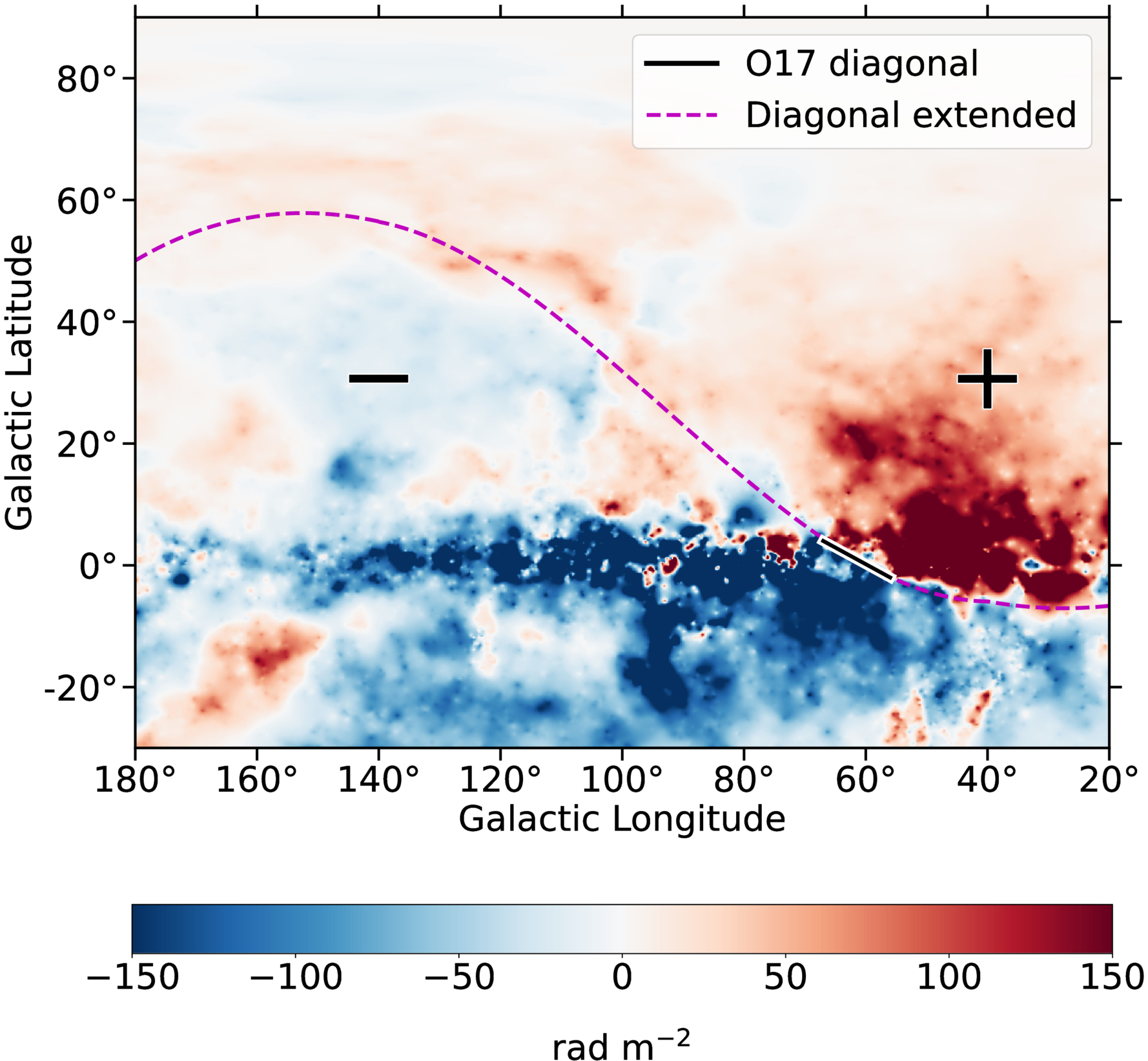

The O17 diagonal (black) plotted on the H22 map. The dashed magenta line demonstrates how a curved extension of the diagonal separates adjacent peaks of the ﹩\sin 2\ell ﹩ pattern, marked with − and + signs.
