A Three-dimensional Model for the Reversal in the Local Large-scale Interstellar Magnetic Field

Authors: Rebecca A. Booth, Anna Ordog, Jo-Anne Brown, T. L. Landecker, Alex S. Hill, Jennifer L. West, Minjie Lei, S. E. Clark, Andrea Bracco, John M. Dickey, Ettore Carretti

Rebecca A. Booth et al 2026 The Astrophysical Journal 997 .

Provider: AAS Journals

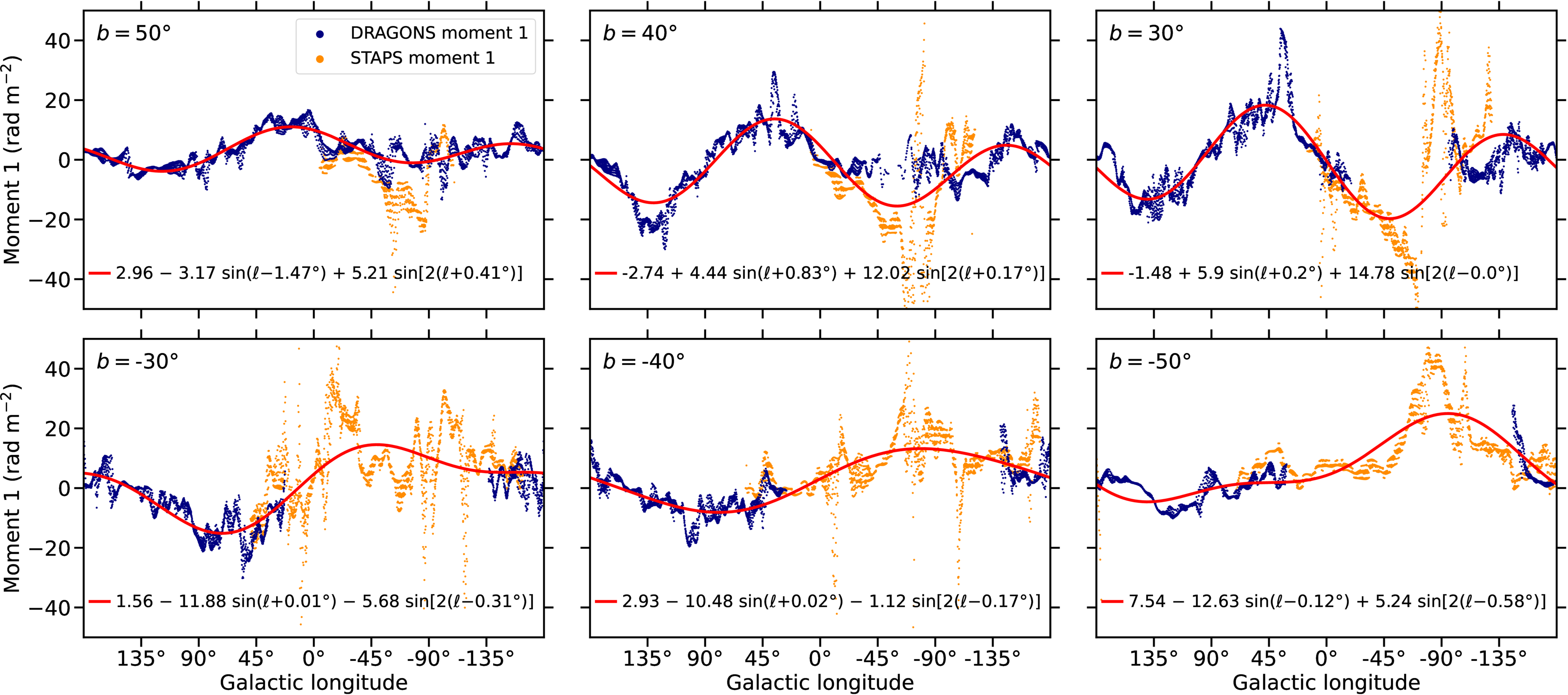

Caption: Figure 5.

DRAGONS (blue) and STAPS (orange) M1 values plotted along lines of constant latitude. Sinusoids fitted to the combined DRAGONS and STAPS M1 map (Figure 2) along the corresponding latitudes are plotted in red.
