Mass–Radius Relationships for Irradiated Ocean Planets

  • Authors: Artyom Aguichine, Olivier Mousis, Magali Deleuil, and Emmanuel Marcq

2021 The Astrophysical Journal 914 84.

  • Provider: AAS Journals

Caption: Figure 7.

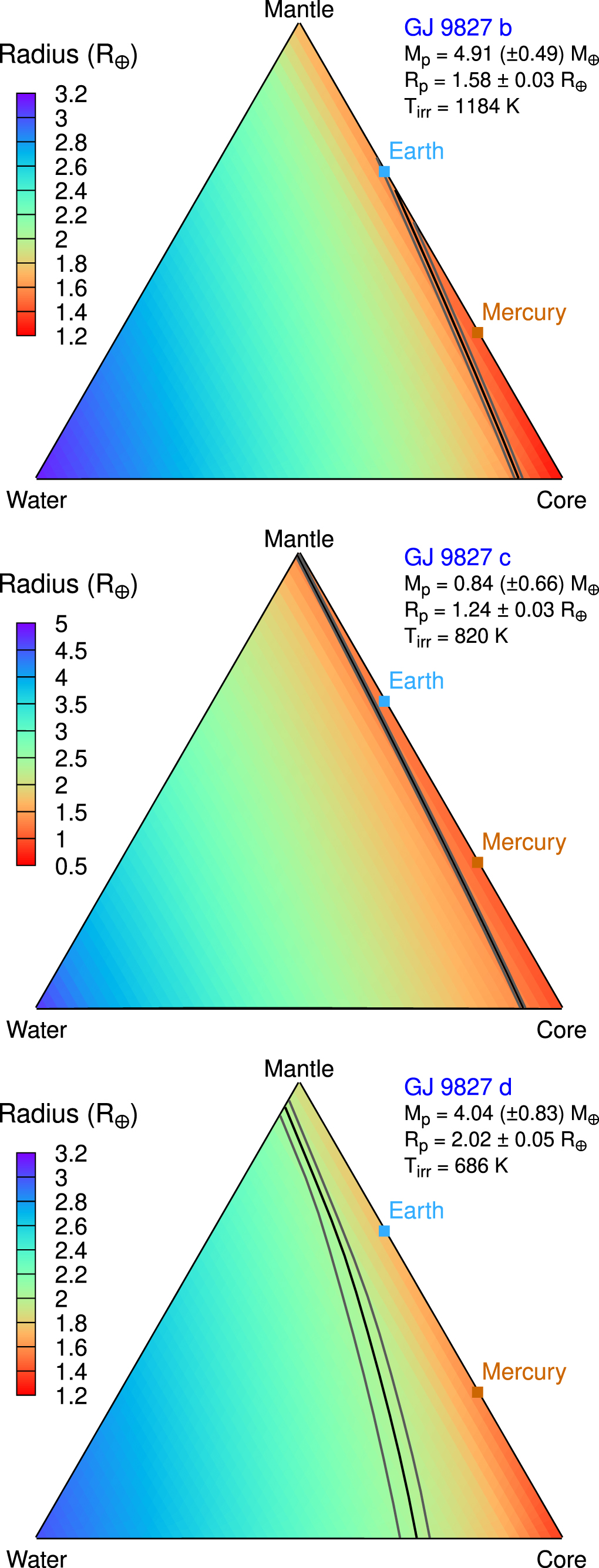

From top to bottom: possible compositions of planets b, c, and d of the GJ 9827 system (Rice et al. 2019) in the forms of compositional ternary diagrams. Ternary diagrams were computed for the central masses of the planets, and contours are plotted for the measured radius and 1σ error bar.
