Quasi-periodic Counter-propagating Fast Magnetosonic Wave Trains from Neighboring Flares: SDO/AIA Observations and 3D MHD Modeling

Authors: Leon Ofman and Wei Liu

2018 The Astrophysical Journal 860 54.

Provider: AAS Journals

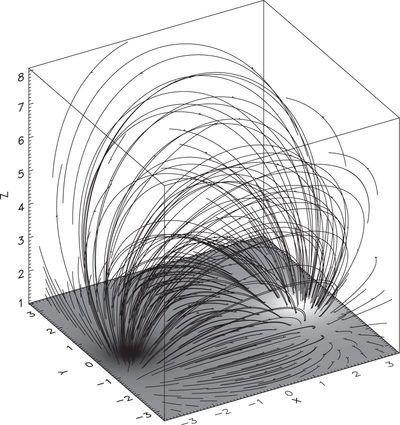

Caption: Figure 5.

Initial, bipolar model AR magnetic field configuration for a dipole separation of d = 2.5. An animation of the 3D magnetic field due to the impact of the QFPs is available online.
