THE r-PROCESS NUCLEOSYNTHESIS IN THE VARIOUS JET-LIKE EXPLOSIONS OF MAGNETOROTATIONAL CORE-COLLAPSE SUPERNOVAE

  • Authors: Nobuya Nishimura, Tomoya Takiwaki, and Friedrich-Kerl Thielemann

2015 The Astrophysical Journal 810 109.

  • Provider: AAS Journals

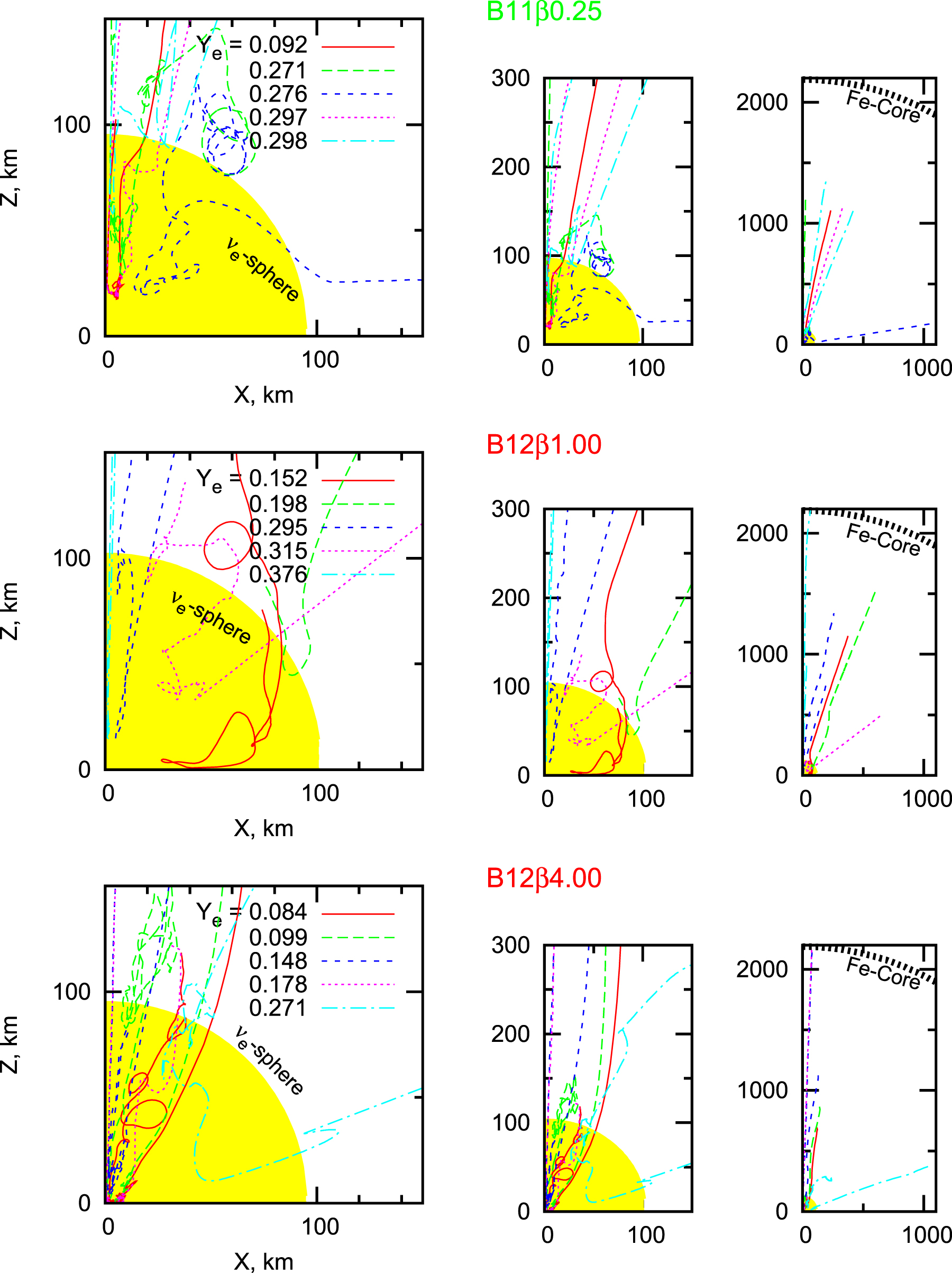

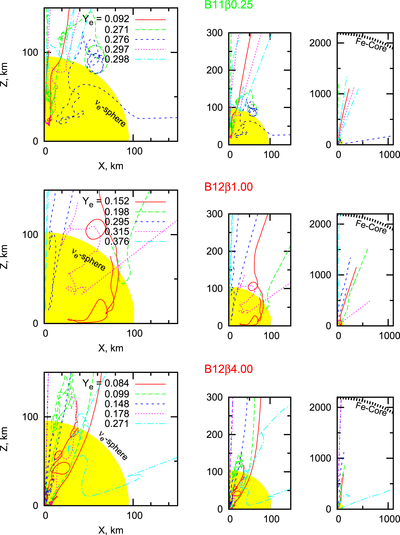

Caption: Figure 5.

Track for ejected tracer particles and the path of tracer particles for a delayed-jet model. B11 ﹩\beta ﹩ 0.25 (upper) and two prompt models, B12 ﹩\beta ﹩ 1.00 (medium) and B12 ﹩\beta ﹩ 4.00 (lower), are illustrated in different spacial scales. Each particle is labeled by ﹩{Y}_{{\rm{e}}}﹩ at the end of NSE. The central filled (yellow) circular area describes the neutrino-sphere.
