KRONOS I: The 1–2.8 μm JWST Transmission Spectrum of the 23 Myr V1298 Tau c

  • Authors: Matthew M. Murphy, Matthew C. Nixon, Adina D. Feinstein, Luis Welbanks, Girish M. Duvvuri, Saugata Barat, Benjamin V. Rackham, Darryl Z. Seligman, Michael Radica, Ian J. M. Crossfield, Kevin France, John H. Livingston, Jonathan Lunine, Rafael Luque, Catriona Murray, Sagnick Mukherjee, Biruk Nardos, Sydney Petz, Hinna Shivkumar

Matthew M. Murphy et al 2026 The Astronomical Journal 172 .

  • Provider: AAS Journals

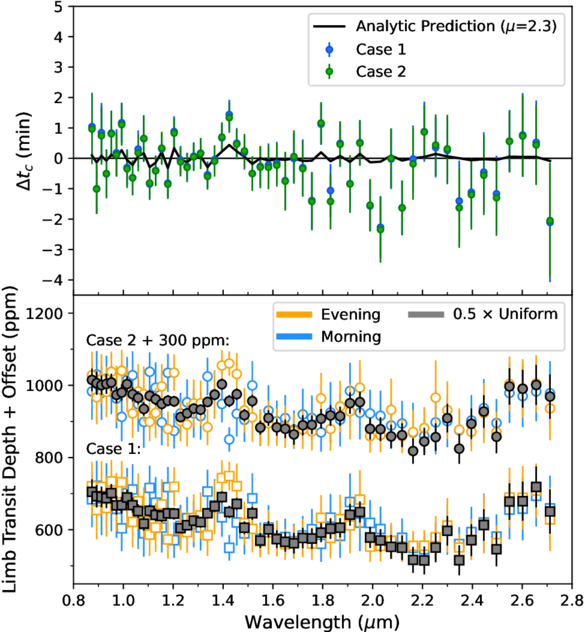

Caption: Figure 9.

Results of tests for evening–morning limb asymmetry on V1298 Tau c. Top: the timing bias spectra from our uniform-limb spectroscopic fits in Cases 1 (blue) and 2 (green), compared to the analytic model (black line) of M. M. Murphy et al. (2024). Bottom: the evening- (orange) and morning-limb (blue) spectra compared to their corresponding uniform-limb spectra (gray). The Case 2 results are all offset by 300 ppm for visual clarity, but the evening- and morning-limb spectra are not offset relative to one another. We see no significant evidence for limb asymmetry on V1298 Tau c. ✎
