Design, Testing, and Commissioning of the Sun Yat-sen University (SYSU) 80 cm Infrared Telescope

  • Authors: Zhong-Nan Dong, Bin Ma, Chun Chen, Wei-Sen Huang, Jin-Ji Li, Jia-Qi Lin, Yun Shi, Hao-Ran Zhang, Duo-Le Cao, Bao-Gang Chen, Tai-Ran Deng, Rui-Chen Gao, Yi Hu, Hong-Zhuang Li, Xia Li, Pu Lin, Yang Liu, Bo Ma, Rong-Feng Shen, Li-Duo Song, Fang-Yu Xu, Hao-Nan Yang, Yan Yu, Jun Yuan, Xiang-Tao Zeng, Hao-Yuan Zheng

Zhong-Nan Dong et al 2026 The Astronomical Journal 171 .

  • Provider: AAS Journals

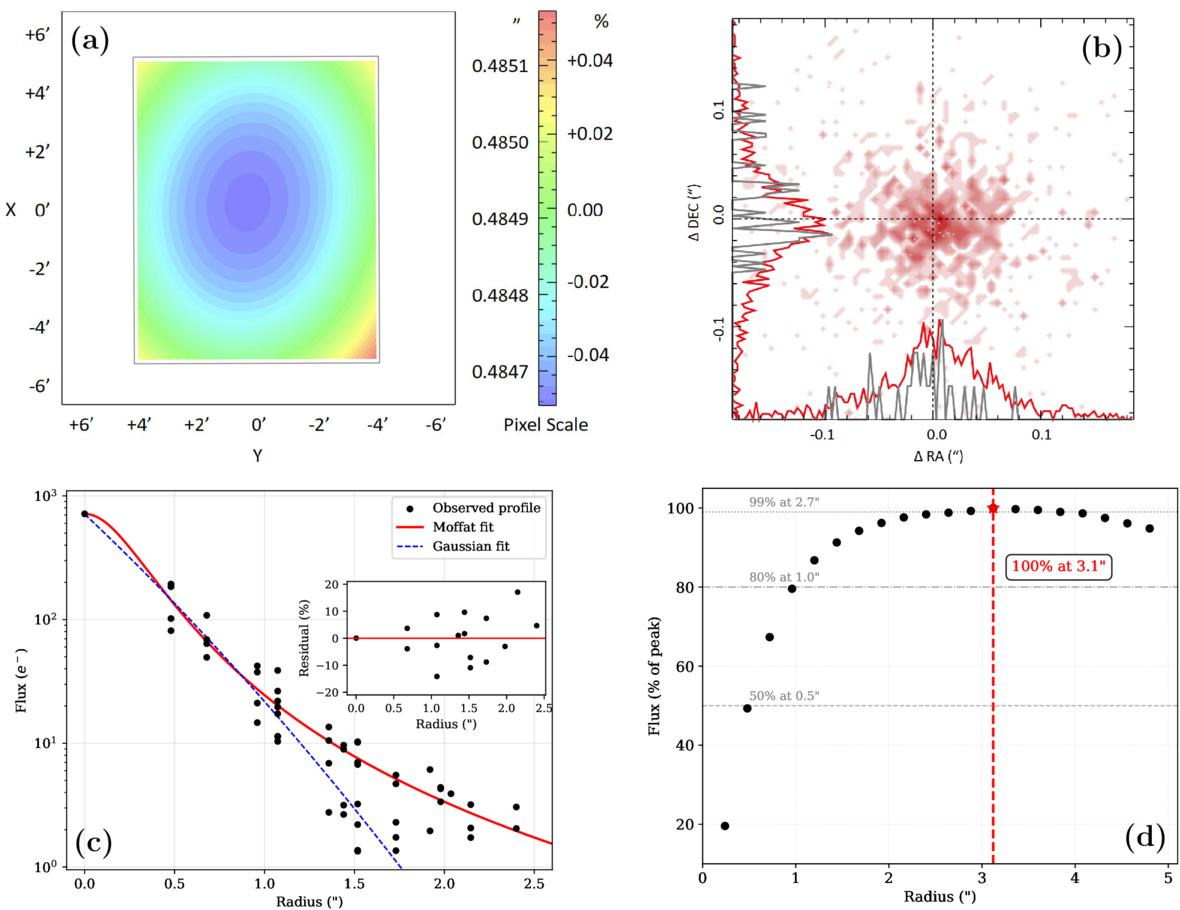

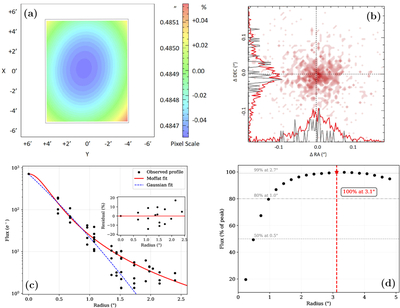

Caption: Figure 3.

(a) Distortion pattern across the focal plane. The pixel scale is 0﹩\mathop{.}\limits^{\unicode{x02033}}﹩485 pixel−1, and the distortion amplitude remains below 0.05%. (b) Astrometric accuracy for 1084 stars in NGC 6819, showing astrometry rms accuracy of 0﹩\mathop{.}\limits^{\unicode{x02033}}﹩06 in both R.A. and decl. relative to Gaia EDR3. (c) Lucky imaging PSF. A Moffat profile, with its shape parameter β converging at ∼1.5, yields an FWHM of 0﹩\mathop{.}\limits^{\unicode{x02033}}﹩5, providing a more robust characterization of the extended wings than a Gaussian fit. A logarithmic y-axis is used to emphasize the structure of the outer wings. (d) Encircled energy growth curve, with the EE80 radius of approximately 1″ (about 2 pixels).
