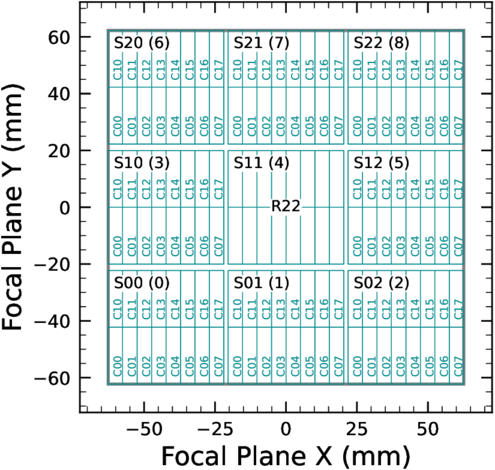

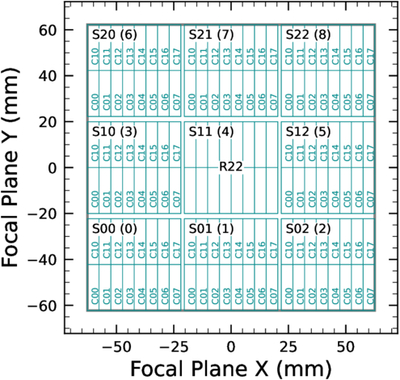

Caption: Figure 2.
LSSTComCam focal plane layout, showing R22 and the placement and numbering scheme of sensors (“S”) and amplifiers (“C”). The view is from above, looking through the LSSTComCam lenses onto the focal plane. Each sensor contains 16 amplifiers, and the raft is composed of a 3 × 3 array of sensors. The detector number for each sensor is indicated in parentheses.
