The JWST/NIRISS Deep Spectroscopic Survey for Young Brown Dwarfs and Free-floating Planets

  • Authors: Adam B. Langeveld, Aleks Scholz, Koraljka Mužić, Ray Jayawardhana, Daniel Capela, Loïc Albert, René Doyon, Laura Flagg, Matthew de Furio, Doug Johnstone, David Lafrèniere, Michael Meyer

Adam B. Langeveld et al 2024 The Astronomical Journal 168 .

  • Provider: AAS Journals

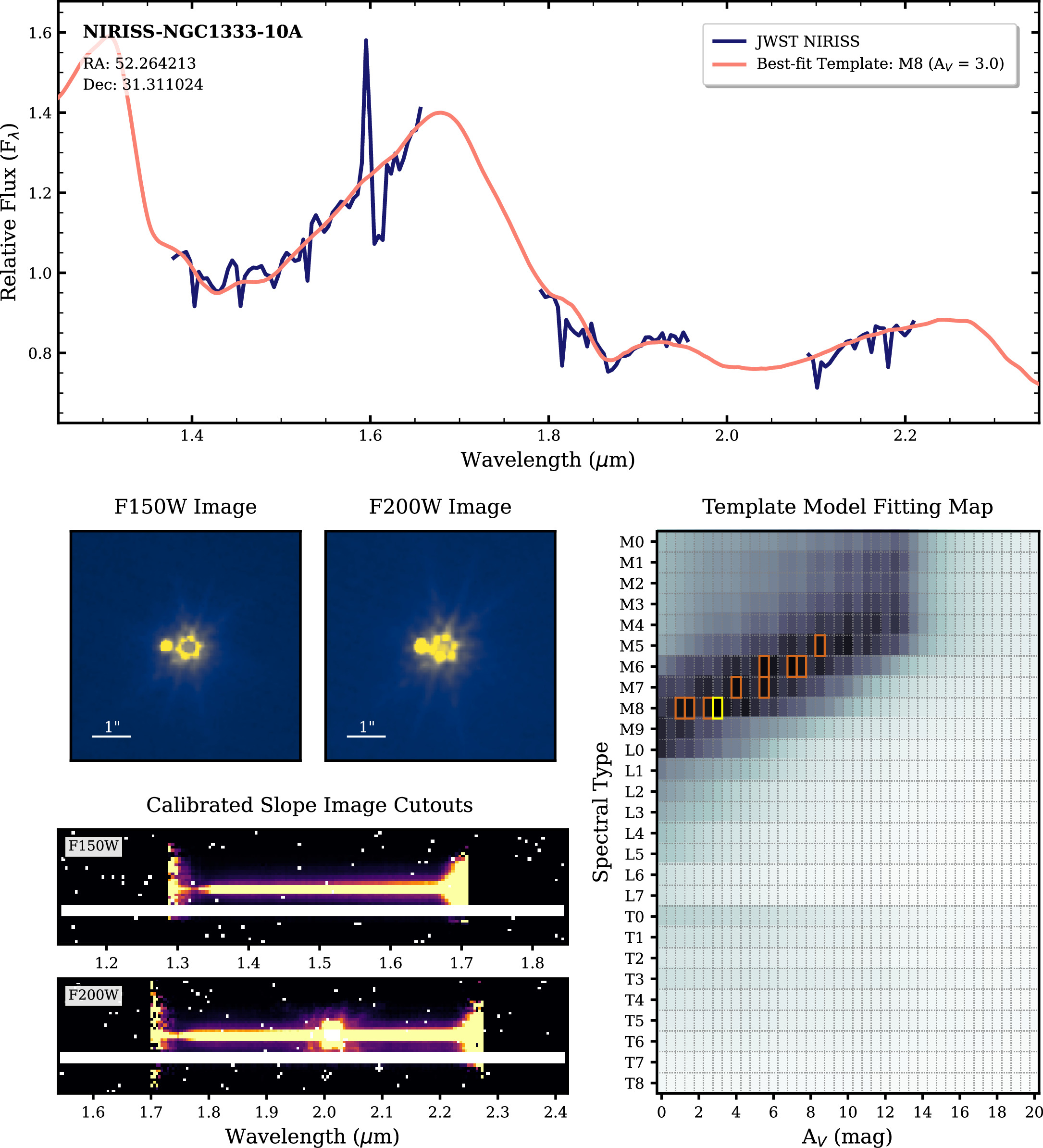

Caption: Figure 14.

Results of the spectroscopic survey for object NIRISS-NGC1333-10A (NN10A)—the primary object of the binary NN10 (with NN10B shown in Figure 15). Panels shown are the same as in Figure 5. The calibrated slope image cutouts show that there is contamination in the F200W spectrum from a source that overlaps with the spectral trail—the data in this region is unusable and was removed (evident by the gap in the spectrum in the top panel between ∼1.95 and 2.1 μm). The cutouts also display a large white region (where all values are NaNs) to remove the spectrum of the companion object.
