The JWST/NIRISS Deep Spectroscopic Survey for Young Brown Dwarfs and Free-floating Planets

  • Authors: Adam B. Langeveld, Aleks Scholz, Koraljka Mužić, Ray Jayawardhana, Daniel Capela, Loïc Albert, René Doyon, Laura Flagg, Matthew de Furio, Doug Johnstone, David Lafrèniere, Michael Meyer

Adam B. Langeveld et al 2024 The Astronomical Journal 168 .

  • Provider: AAS Journals

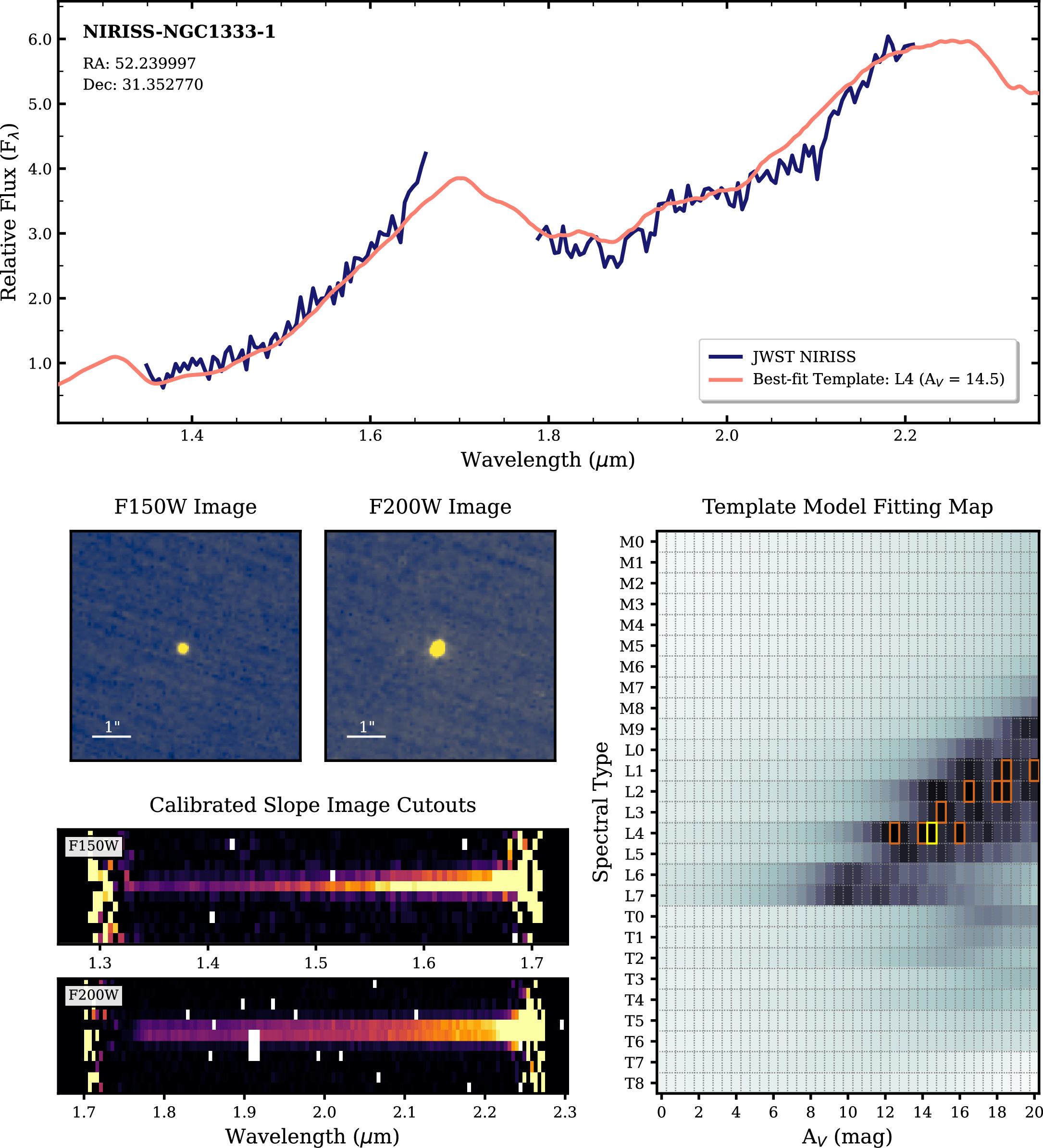

Caption: Figure 5.

Results of the spectroscopic survey for object NIRISS-NGC1333-1 (NN1). Top panel: NIRISS WFSS spectrum (dark blue) with flux scaled to a value of 1 at a wavelength of 1.4 μm, and best-fit template (salmon pink) from Section 4.2 that has been smoothed using a Savitzky–Golay filter. Middle-left panels: NIRISS images of the object in the F150W and F200W filters with a 1″ scale. Bottom-left panels: calibrated slope image cutouts that are produced by the calwebb_spec3 pipeline for the NIRISS F150W and F200W filters and modified to apply the background subtraction. Bottom-right panel: map of the metric calculated as part of the spectral fitting. The templates that most closely fit the data (having lowest M; see Equation (1)) are located in the darkest regions. The best solution is marked with a yellow box, and the corresponding template is displayed in the top panel to compare to the observed spectrum. The remaining best nine solutions are marked in orange.
