Kepler K2 and TESS Observations of Two Magnetic Cataclysmic Variables: The New Asynchronous Polar SDSS J084617.11+245344.1 and Paloma

  • Authors: Colin Littlefield, D. W. Hoard, Peter Garnavich, Paula Szkody, Paul A. Mason, Simone Scaringi, Krystian Ilkiewicz, Mark R. Kennedy, Saul A. Rappaport, Rahul Jayaraman

Colin Littlefield et al 2023 The Astronomical Journal 165 .

  • Provider: AAS Journals

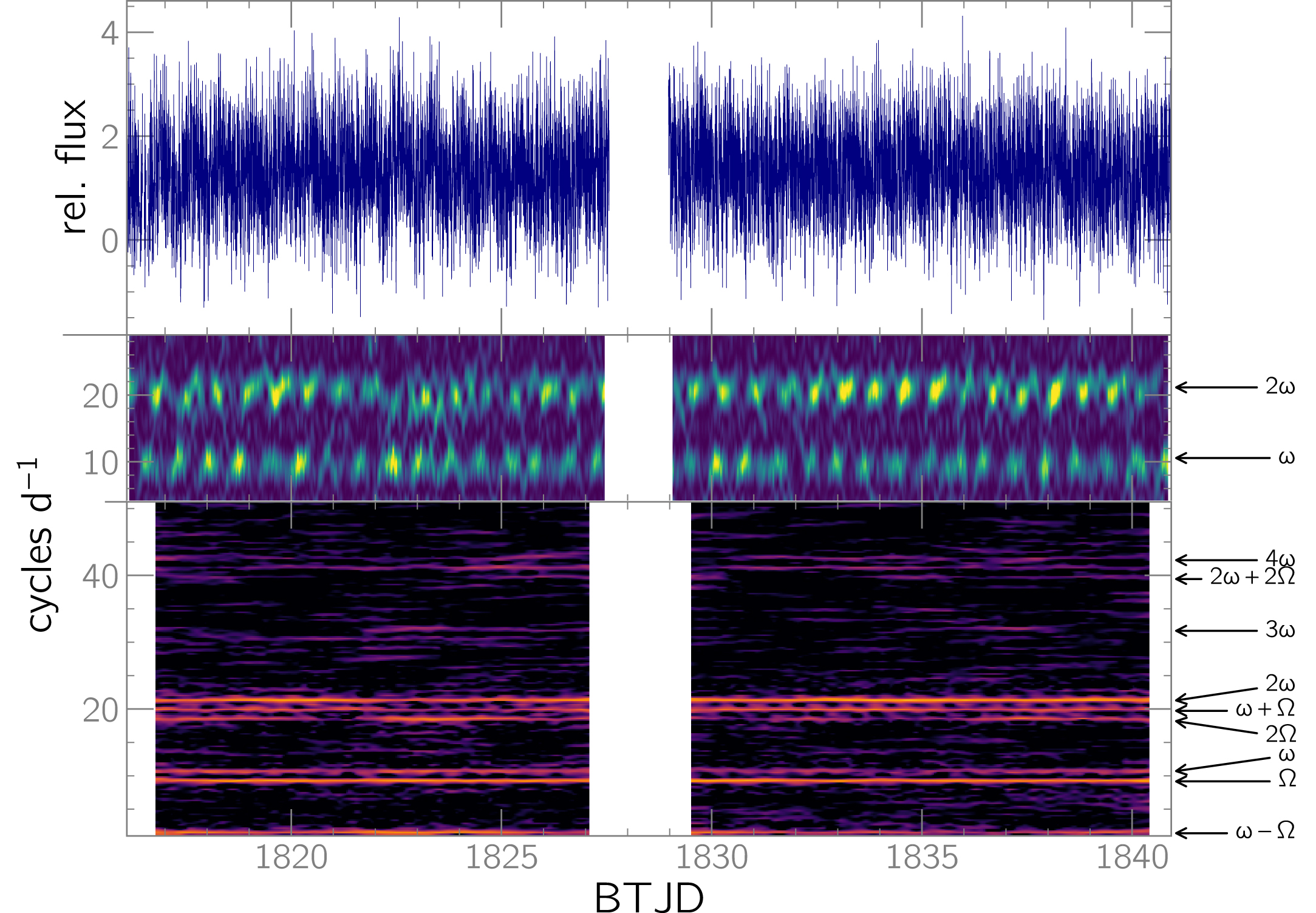

Caption: Figure 5.

Top: the TESS light curve of Paloma. BTJD is defined as BJD –2,457,000. Middle: 2D power spectrum with a 0.25-day sliding window, with linear intensity scaling. Across the 0.7-day beat cycle, the light curve alternates between a single- and double-humped profile, causing power to shift cyclically between ω and 2ω. Bottom: 2D power spectrum with a 2-day sliding window and logarithmic scaling. The larger window size offers improved frequency resolution at the expense of completely concealing the changes evident in the middle panel.
