Kepler K2 and TESS Observations of Two Magnetic Cataclysmic Variables: The New Asynchronous Polar SDSS J084617.11+245344.1 and Paloma

  • Authors: Colin Littlefield, D. W. Hoard, Peter Garnavich, Paula Szkody, Paul A. Mason, Simone Scaringi, Krystian Ilkiewicz, Mark R. Kennedy, Saul A. Rappaport, Rahul Jayaraman

Colin Littlefield et al 2023 The Astronomical Journal 165 .

  • Provider: AAS Journals

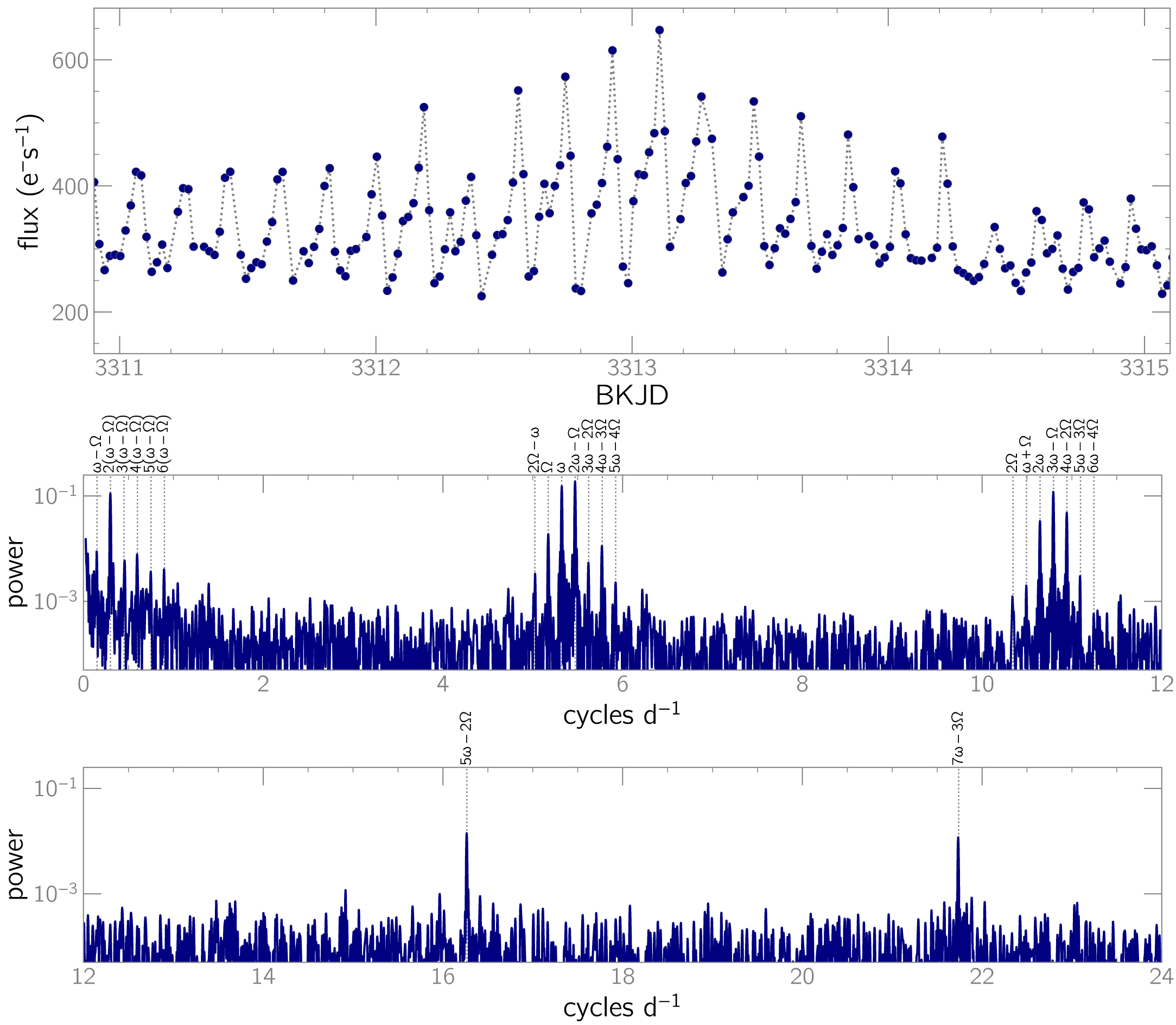

Caption: Figure 1.

Top panel: representative ∼4-day segment of the K2 light curve of J0846. Each datum is a 30-minute integration, and consecutive measurements have been joined with dotted line segments to guide the eye. Flux uncertainties are negligibly small at this scale. BKJD is defined as JD −2,454,833. Middle and bottom panels: Lomb–Scargle power spectrum of the K2 light curve of J0846, split into two panels to improve the visibility of major frequencies. ω is the WD’s spin frequency and Ω is the binary orbital frequency.
