Figure 9 from Low-frequency Radio Absorption in Tycho’s Supernova Remnant

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Low-frequency Radio Absorption in Tycho’s Supernova Remnant

Authors: Maria Arias, Jacco Vink, Ping Zhou, Francesco de Gasperin, Martin J. Hardcastle, and Tim W. Shimwell

2019 The Astronomical Journal 158 253.

Provider: AAS Journals

Caption: Figure 9.

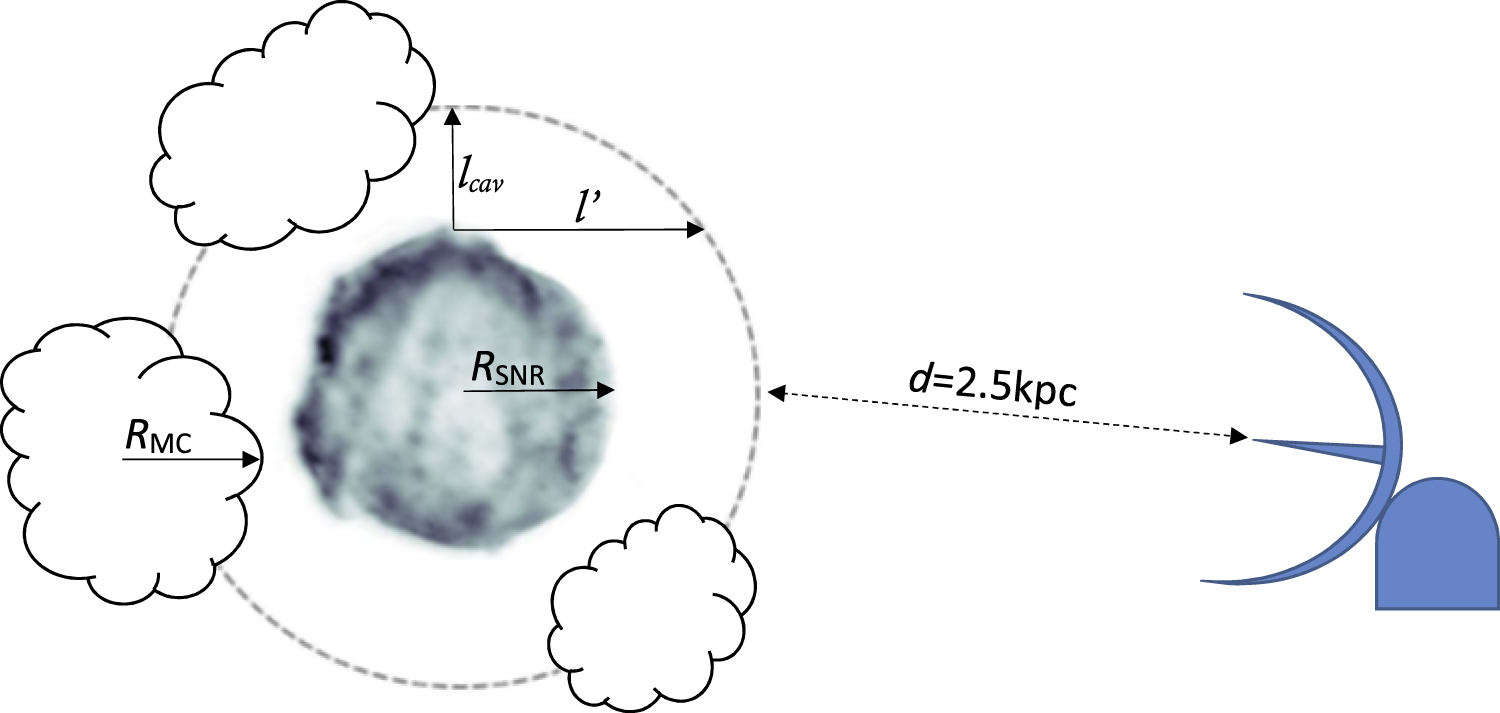

Cartoon showing the geometry assumed for the discussion in Section 4.2. Tycho is surrounded by a diffuse cavity of length l_cav, and the molecular clouds are in a ring-like shape around it.
