SPARC: MASS MODELS FOR 175 DISK GALAXIES WITH SPITZER PHOTOMETRY AND ACCURATE ROTATION CURVES

  • Authors: Federico Lelli, Stacy S. McGaugh, and James M. Schombert

2016 The Astronomical Journal 152 157.

  • Provider: AAS Journals

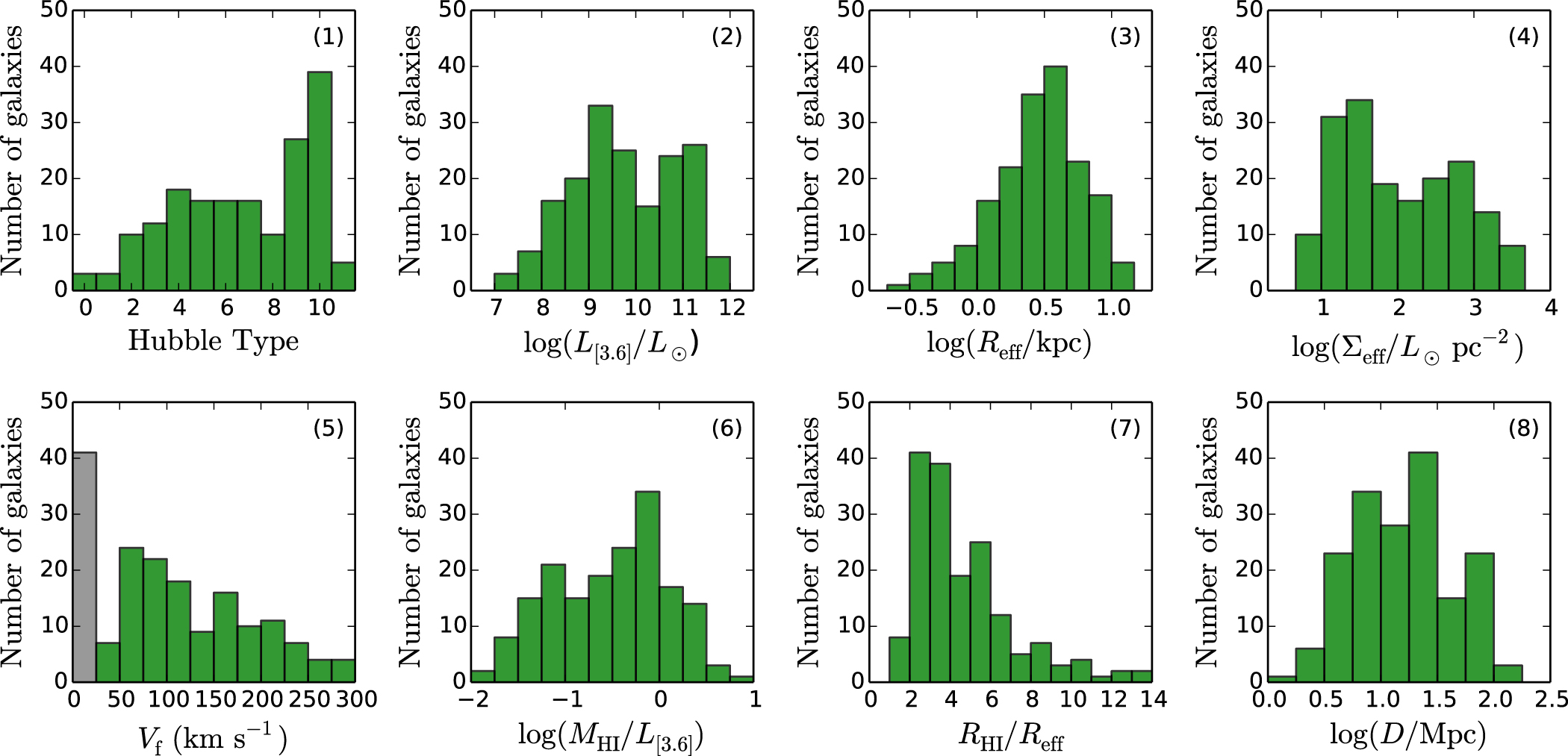

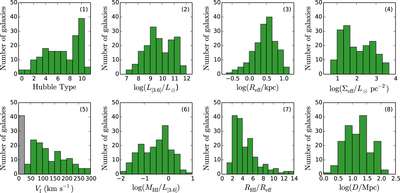

Caption: Figure 1.

Overall properties of SPARC galaxies: (1) numerical Hubble type; (2) total [3.6] luminosity; (3) effective [3.6] surface brightness; (4) effective radius; (5) velocity along the flat part of the rotation curve; we assign Vf = 0 to rotation curves that do not reach a flat part within ∼5% (gray bin); (6) ratio of H I mass to [3.6] luminosity; (7) ratio of H I radius to effective radius; (8) assumed distance.
