Figure 3 from A Three-dimensional Map of the Heliosphere from IBEX

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

A Three-dimensional Map of the Heliosphere from IBEX

Authors: Daniel B. Reisenfeld, Maciej Bzowski, Herbert O. Funsten, Jacob Heerikhuisen, Paul H. Janzen, Marzena A. Kubiak, David J. McComas, Nathan A. Schwadron, Justyna M. Sokół, Alex Zimorino, and Eric J. Zirnstein

2021 The Astrophysical Journal Supplement Series 254 40.

Provider: AAS Journals

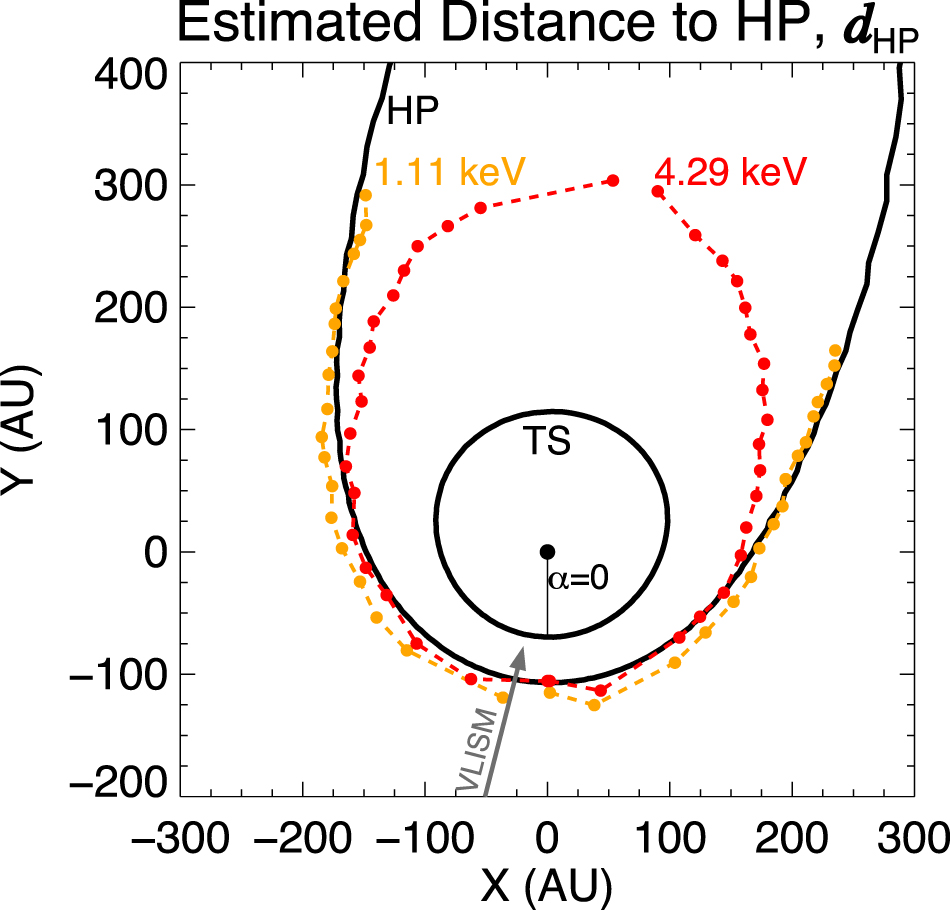

Caption: Figure 3.

Estimation of the distance to the HP in the Zirnstein et al. (2018) simulation using the sounding method. The location of the simulated HP is shown in black, and the estimated distances to the HP based on applying the sounding method to the simulated flux of ENAs at 1.11 (corresponding to IBEX-Hi ESA 2) and 4.29 (ESA 6) keV are shown in orange and red, respectively.
