Microlensing Optical Depth and Event Rate in the OGLE-IV Galactic Plane Fields

Authors: Przemek Mróz, Andrzej Udalski, Michał K. Szymański, Igor Soszyński, Paweł Pietrukowicz, Szymon Kozłowski, Jan Skowron, Radosław Poleski, Krzysztof Ulaczyk, Mariusz Gromadzki, Krzysztof Rybicki, Patryk Iwanek, and Marcin Wrona

2020 The Astrophysical Journal Supplement Series 249 16.

Provider: AAS Journals

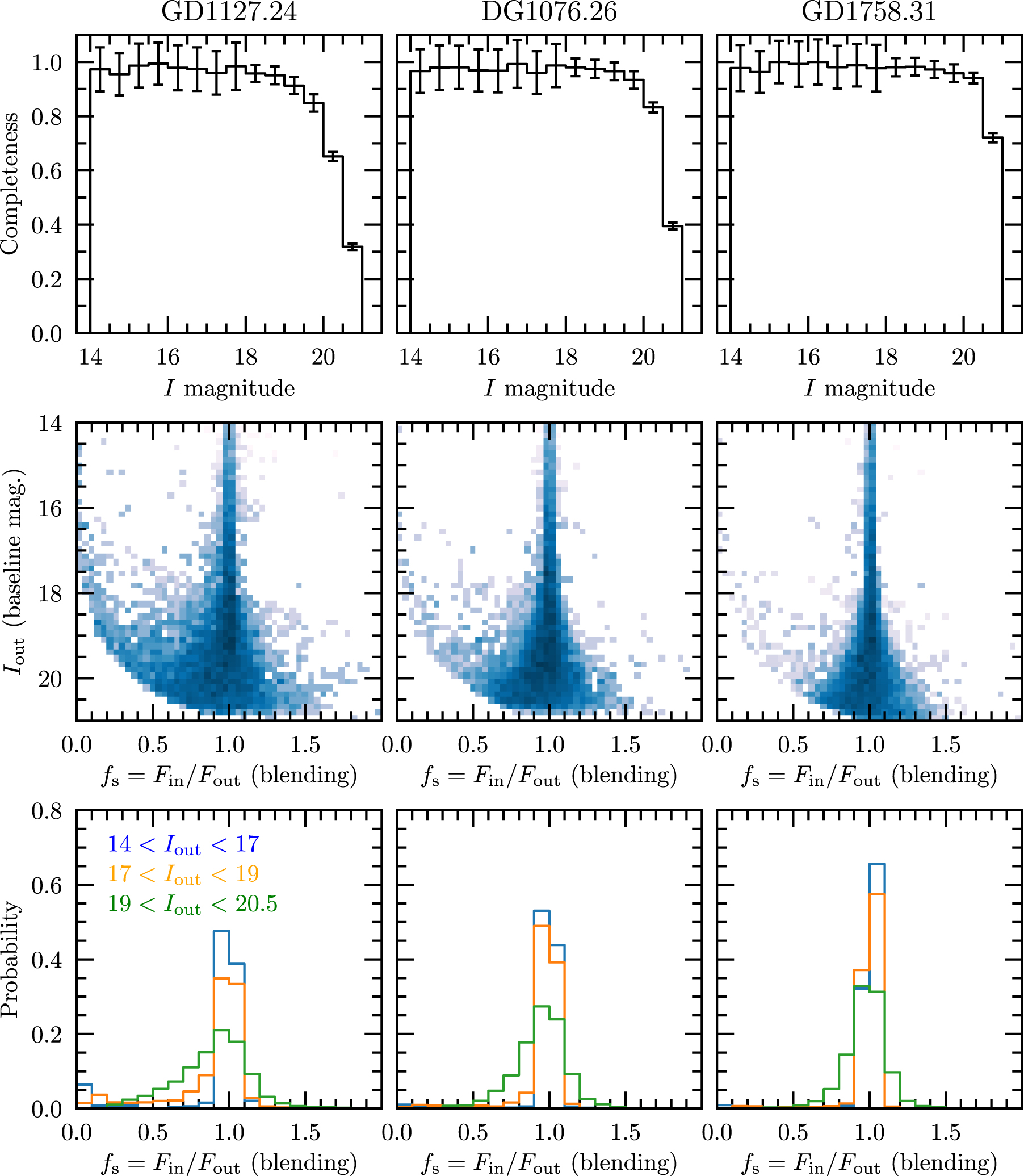

Caption: Figure 3.

Results of image-level simulations in three representative fields of the OGLE GVS: GD1127.24 (603.6 stars arcmin⁻²), DG1076.26 (133.7 stars arcmin⁻²), and GD1758.31 (58.1 stars arcmin⁻²). Typical star surface densities are 1–2 orders of magnitude smaller than in the Galactic bulge fields (Mróz et al. 2019). Top panels: completeness of OGLE star counts as a function of magnitude. Middle and bottom: distributions of the dimensionless blending parameter.
