Atlas of Experimental and Theoretical High-temperature Methane Cross Sections from T = 295 to 1000 K in the Near-infrared

  • Authors: Andy Wong, Peter F. Bernath, Michael Rey, Andrei V. Nikitin, and Vladimir G. Tyuterev

2019 The Astrophysical Journal Supplement Series 240 4.

  • Provider: AAS Journals

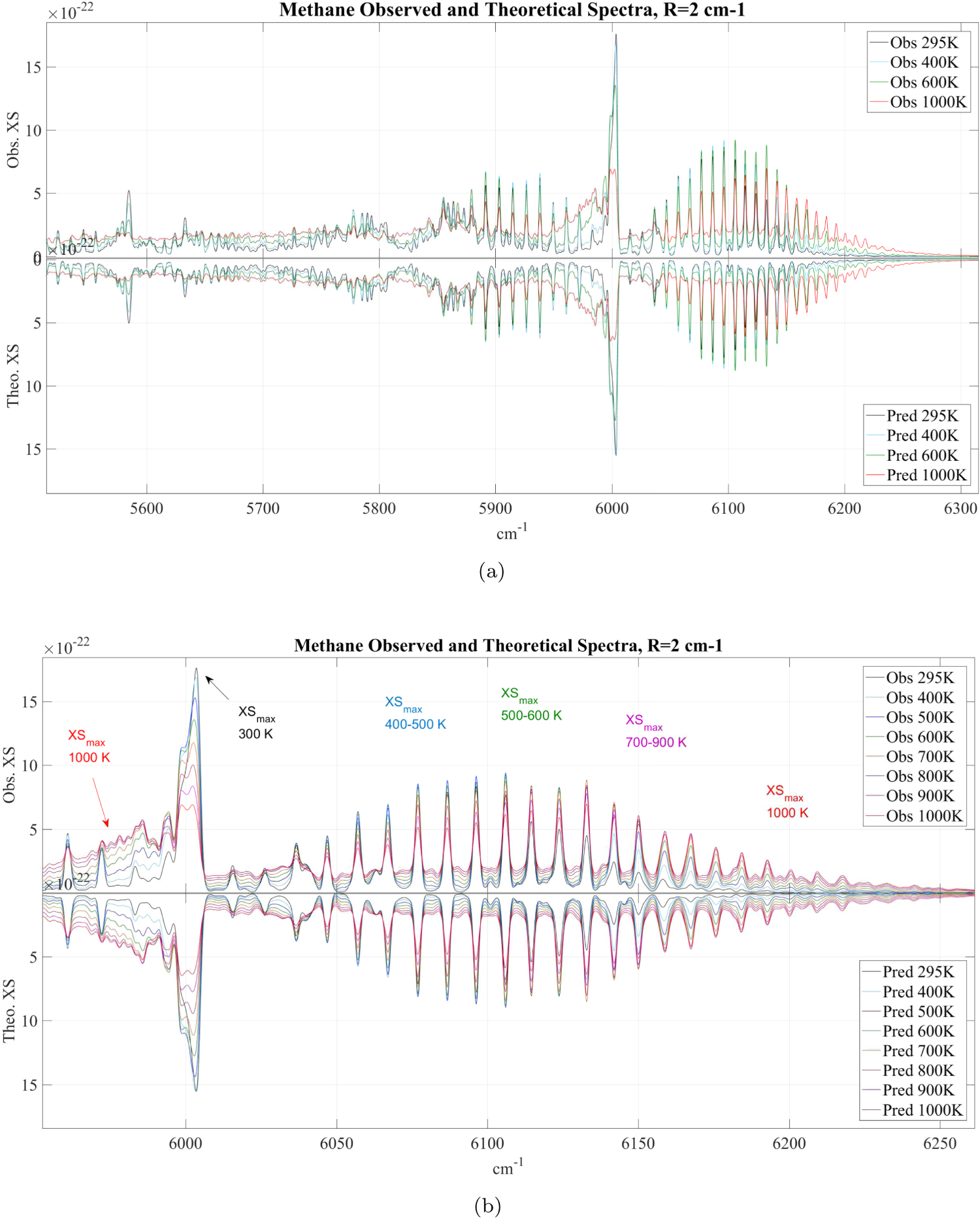

Caption: Figure 3.

Panel (a): overview of absorption cross sections (cm2/molecule) of methane in the tetradecad range 5400–6300 cm−1 at four temperatures, T = 295, 400, 600, and 1000 K: low resolution (R = 2 cm−1) simulations of observations (up) and theory (down). Panel (b): absorption cross sections (cm2/molecule) of methane in the strong absorbing range around 6000 cm−1 at eight temperatures, T = 295, 300, 400, 500, 600, 700, 800, 900, and 1000 K: low resolution (R = 2 cm−1) simulations of observations (up) and theory (down). Dominant absorption features are clearly temperature-dependent, and their relative strengths could be used for fast temperature retrievals.
