Transition Probabilities and Collision Strengths for Electron-impact Excitation of Cl III

  • Authors: A. M. Sossah and S. S. Tayal

Sossah & Tayal 2012 The Astrophysical Journal Supplement Series 202 12.

  • Provider: AAS Journals

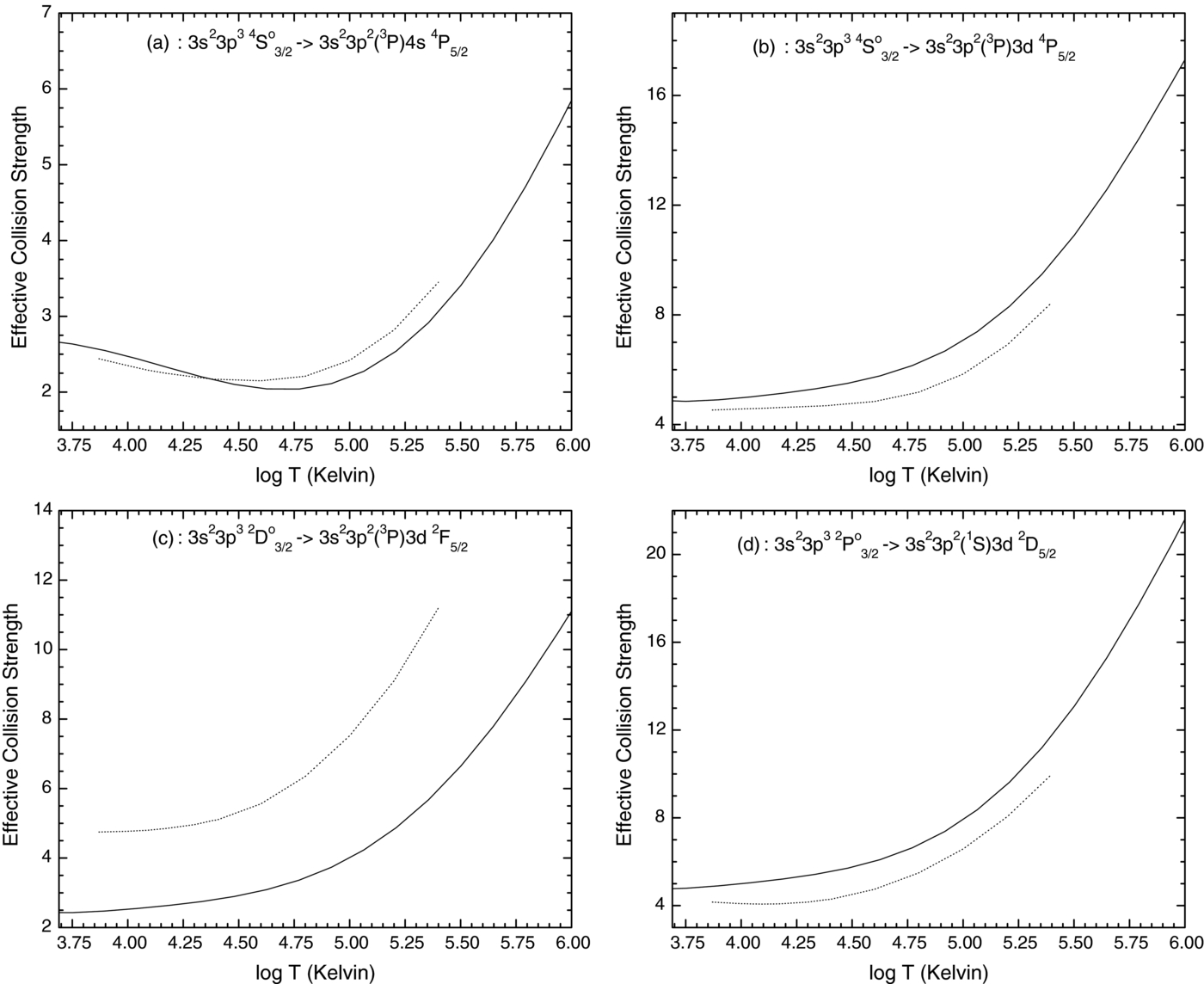

Caption: Figure 8.

Comparison of present effective collision strengths with the results from Ramsbottom et al. (2001) for the dipole-allowed (a) 3 s 23 p 34 S o 3/2 → 3 s 23 p 2( 3 P)4 s4 P 5/2, (b) 3 s 23 p 34 S o 3/2 → 3 s 23 p 2( 3 P)3 d4 P 5/2, (c) 3 s 23 p 32 D o 3/2 → 3 s 23 p 2( 3 P)3 d2 F 5/2, and (d) 3 s 23 p 32 P o 3/2 → 3 s 23 p 2( 1 S)3 d2 D 5/2 transitions in Cl iii as a function of electron temperature. Solid curve: present 68- LSJ state calculation; dotted curve: 23- LS state calculation of Ramsbottom et al. (2001).
