Transition Probabilities and Collision Strengths for Electron-impact Excitation of Cl III

  • Authors: A. M. Sossah and S. S. Tayal

Sossah & Tayal 2012 The Astrophysical Journal Supplement Series 202 12.

  • Provider: AAS Journals

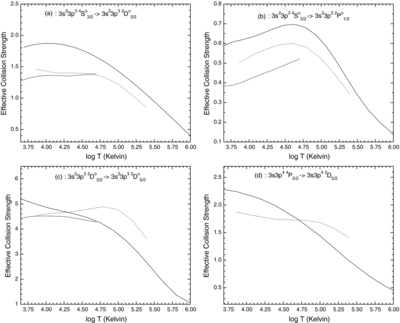

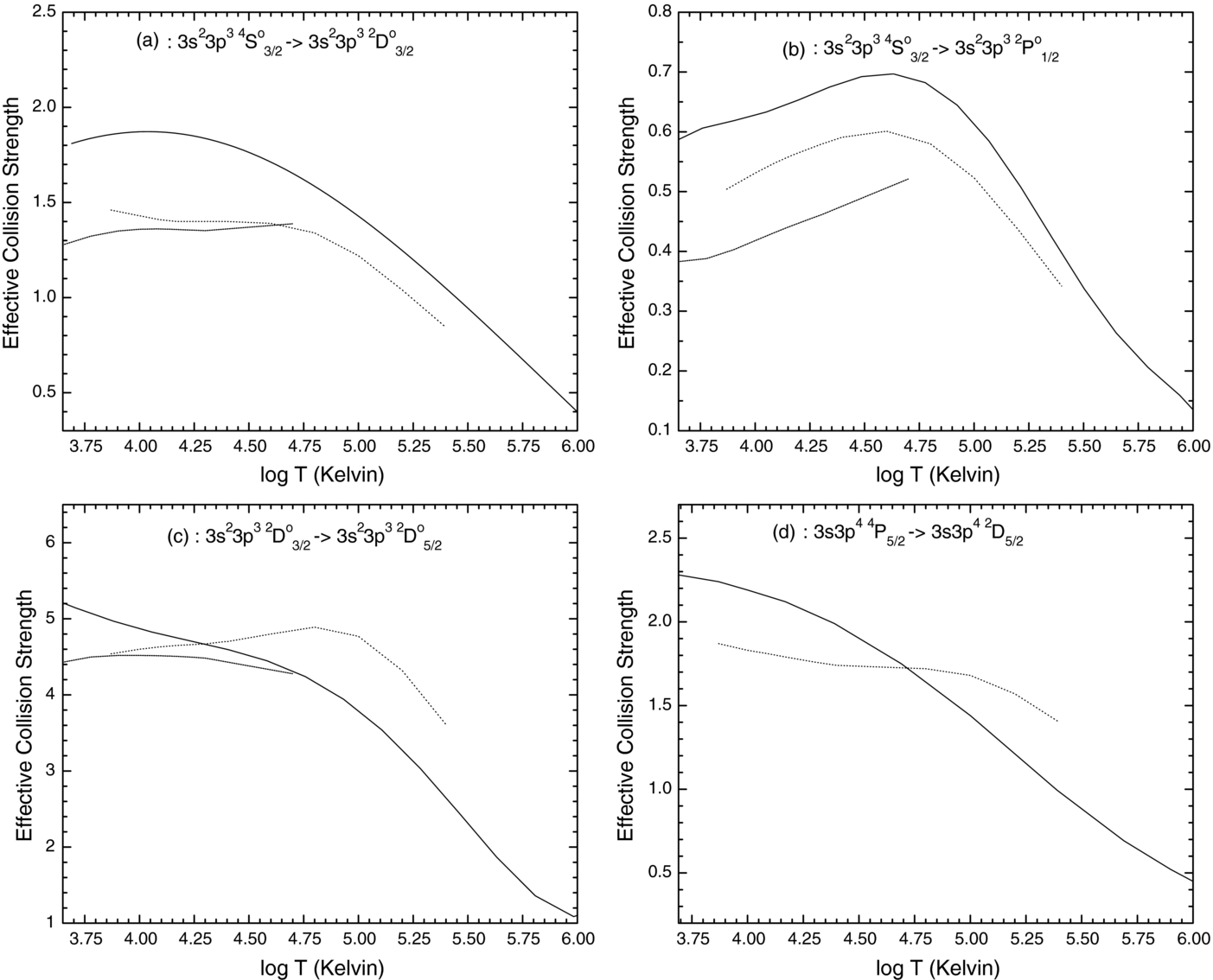

Caption: Figure 7.

Comparison of the present effective collision strengths with the results from Butler & Zeippen (1989) and Ramsbottom et al. (2001) for the forbidden (a) 3 s 23 p 34 S o 3/2 → 3 s 23 p 32 D o 3/2, (b) 3 s 23 p 34 S o 3/2 → 3 s 23 p 32 P o 1/2, (c) 3 s 23 p 32 D o 3/2 → 3 s 23 p 32 D o 5/2, and (d) 3 s3 p 44 P 5/2 → 3 s3 p 42 D 5/2 transitions in Cl iii as a function of electron temperature. Solid curve: present 68- LSJ state calculation; dotted curve: 23- LS state calculation of Ramsbottom et al. (2001); dashed curve: R-matrix calculation of Butler & Zeippen (1989).
