Discrepancy between the Low-frequency Cutoffs of Type III Radio Bursts Based on Simultaneous Observations by WIND and PSP

  • Authors: Bing Ma, 兵 马, Ling Chen, 玲 陈, Dejin Wu, 德金 吴, Marc Pulupa, Stuart D. Bale

Bing Ma et al 2022 The Astrophysical Journal Letters 932 .

  • Provider: AAS Journals

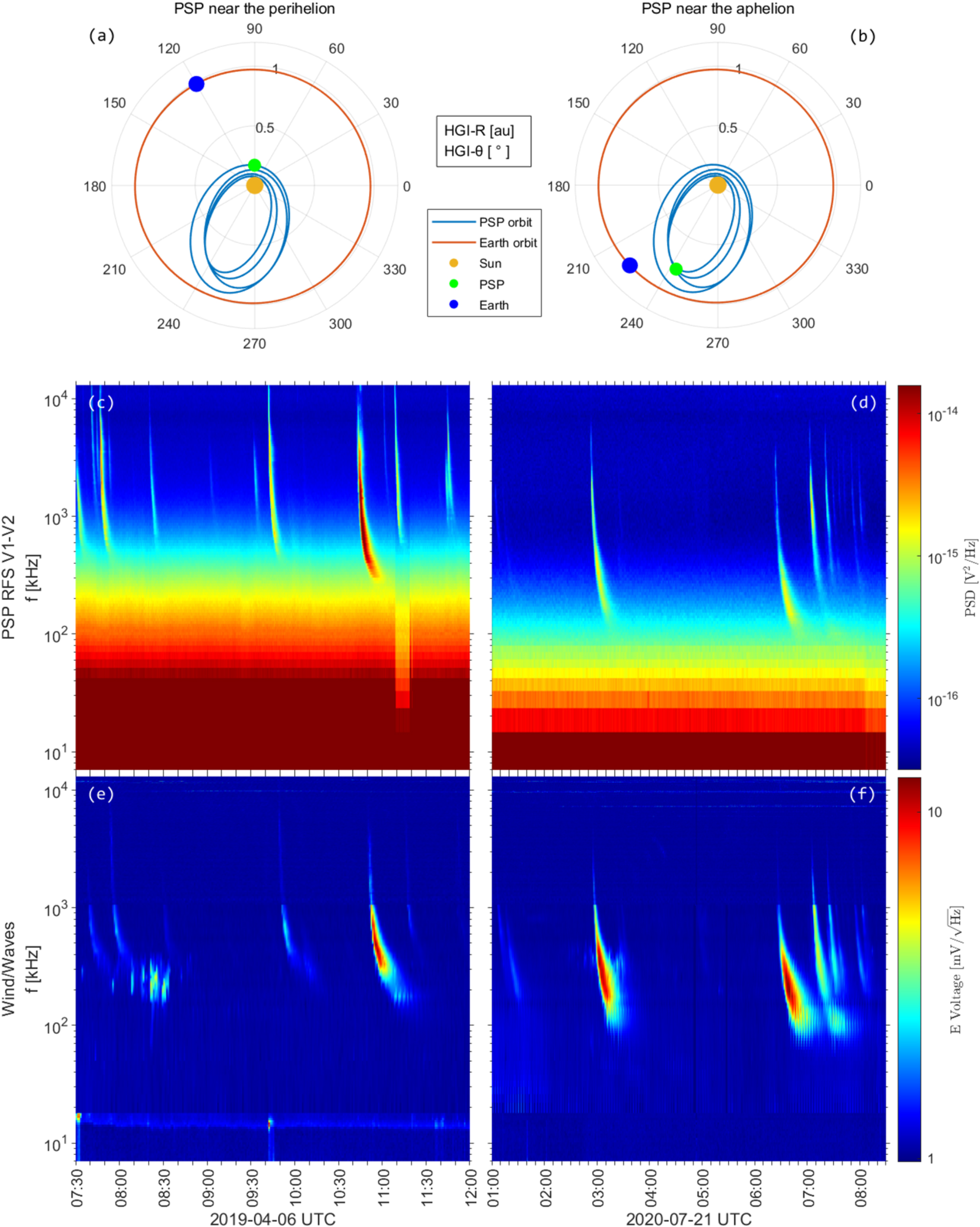

Caption: Figure 4.

Comparison of observations by PSP and WIND when the minimum azimuth difference Δθ < 30° in the two cases of PSP near orbital perihelion and aphelion. Panel (a) shows the positions of Earth (or WIND) and PSP when PSP approaches the perihelion on 2019 April 6. The corresponding dynamic spectra observed by PSP and WIND at 07:30–12:00 UT on this day are shown in panels (c) and (e), respectively. In contrast, panels (b), (d), and (f) show the case of PSP near its aphelion on 2020 July 21, and the corresponding dynamic spectra observed by PSP and WIND at 01:00–08:30 UT, respectively.
