High-frequency Magnetic Fluctuations in Space Plasmas and the Role of Electron Landau Damping

  • Authors: Vincenzo Carbone, Daniele Telloni, Fabio Lepreti, and Antonio Vecchio

2022 The Astrophysical Journal Letters 924 L26.

  • Provider: AAS Journals

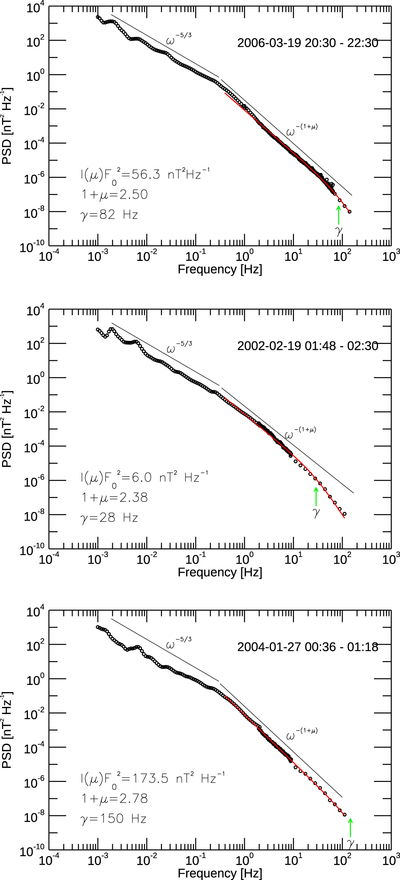

Caption: Figure 1.

Examples of magnetic energy density spectra obtained from three different 30 minute long samples selected from the data set of the Cluster spacecraft (the referenced time interval which identifies each sample is reported on the different panels). The fit with relation (3), beyond the ionic break, is shown in red and best-fit parameters are reported on the plots. As a reference, we also plot the power laws ω−5/3 in the inertial range, and ω−(1+μ) beyond the ionic break, respectively. The value of the frequency γ is shown with the green arrows.
