Figure 4 from Migration of Gas Giant Planets in Gravitationally Unstable Disks

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Migration of Gas Giant Planets in Gravitationally Unstable Disks

Authors: Scott Michael, Richard H. Durisen, and Aaron C. Boley

Michael, Durisen, & Boley 2011 The Astrophysical Journal Letters 737 L42.

Provider: AAS Journals

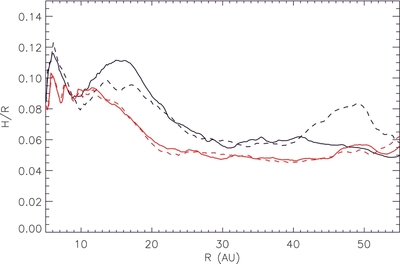

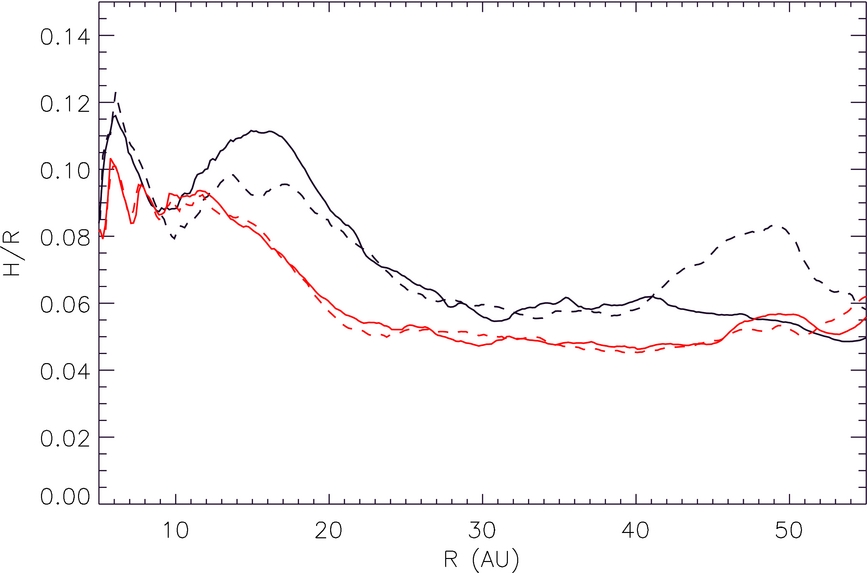

Caption: Figure 4.

Plots of the disk aspect ratio h/ r as determined by a decrease from midplane density by a factor of e ² for the fiducial and t = 0 runs (black) at 10.5 ORP and the fiducial and t = 10 runs (light gray) at 20.5 ORP.
