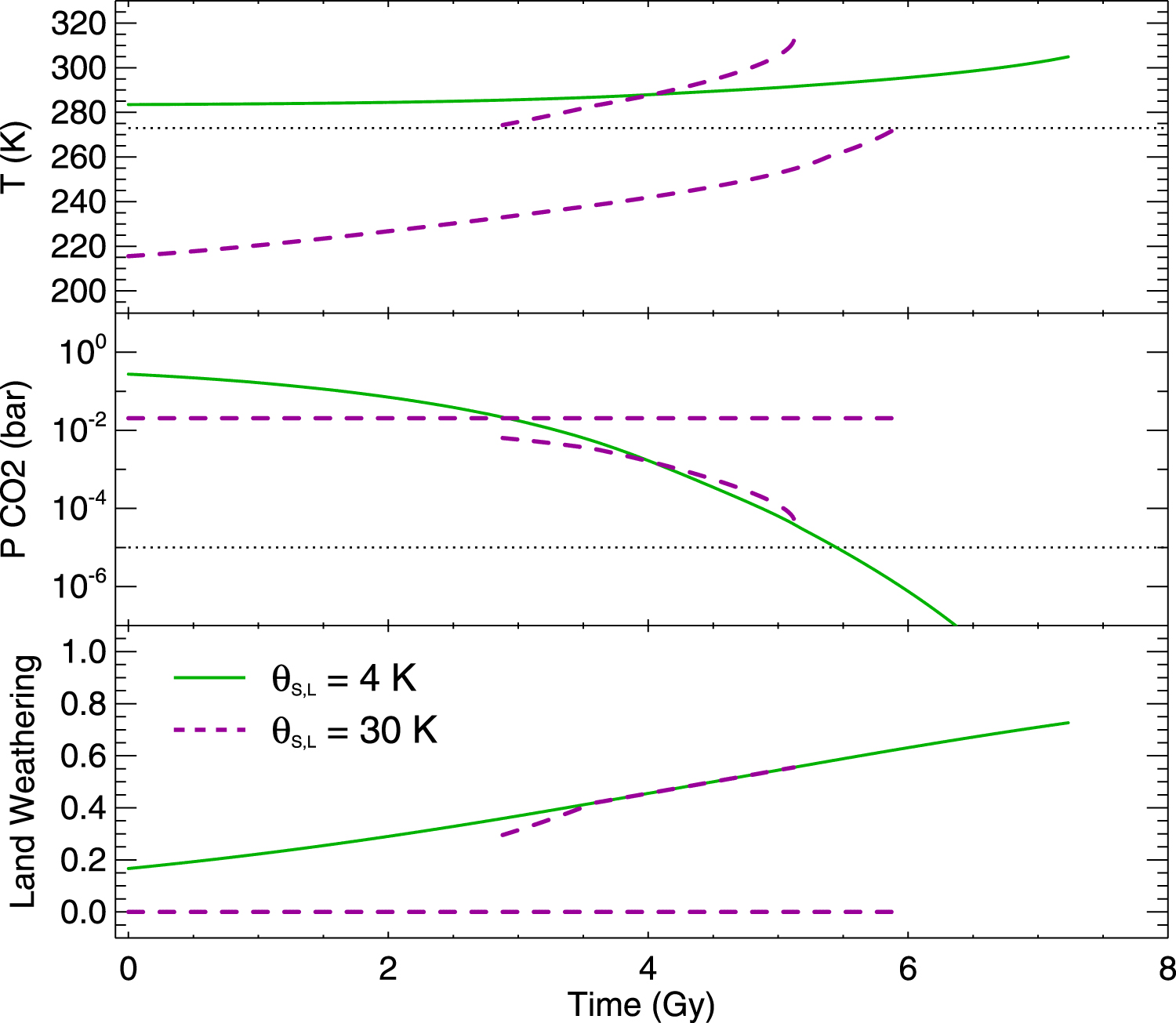

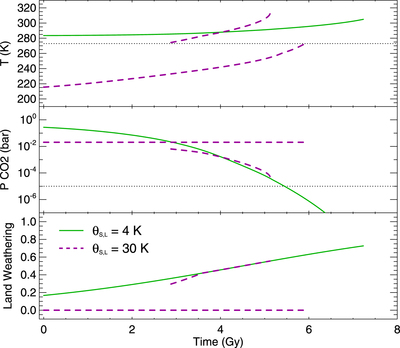

Caption: Figure 8.
Equilibrium global temperature and CO2 partial pressure for an Earth-like planet as a function of time with land-based and seafloor weathering, with WL0 = WS0 = 1/3. The outgassing rate decays exponentially with an initial value G0 = 5 times the current rate. The green curves show a case with weathering temperature dependence θL = θS = 4 K. The purple curves show the case with θL = θS = 30 K.
