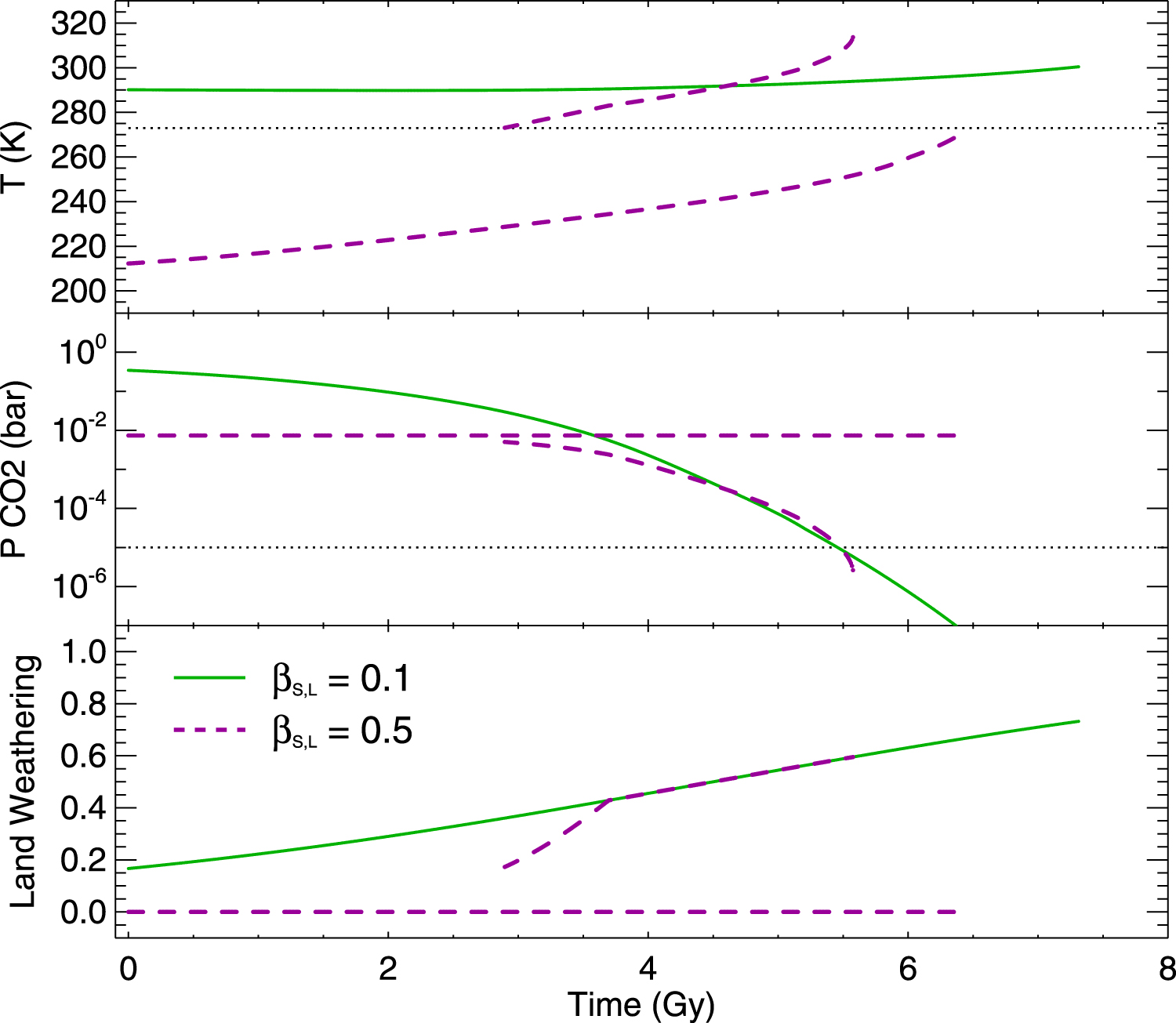

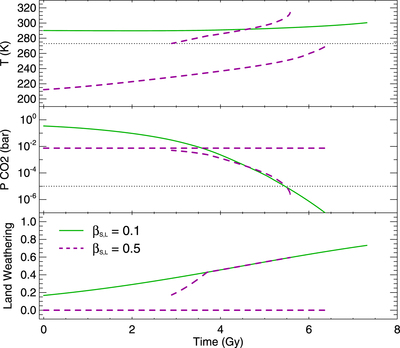

Caption: Figure 7.
Equilibrium global temperature and CO2 partial pressure for an Earth-like planet as a function of time with land-based and seafloor weathering, with WL0 = WS0 = 1/3. The outgassing rate decays exponentially with an initial value G0 = 5 times the current rate. The green curves show a case with weathering CO2-pressure dependences βL = βS = 0.1. The purple curves show the case with βL = βS = 0.5.
