Figure 9 from Dust Formation in AGN Winds

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Dust Formation in AGN Winds

Authors: Arkaprabha Sarangi, Eli Dwek, and Demos Kazanas

2019 The Astrophysical Journal 885 126.

Provider: AAS Journals

Caption: Figure 9.

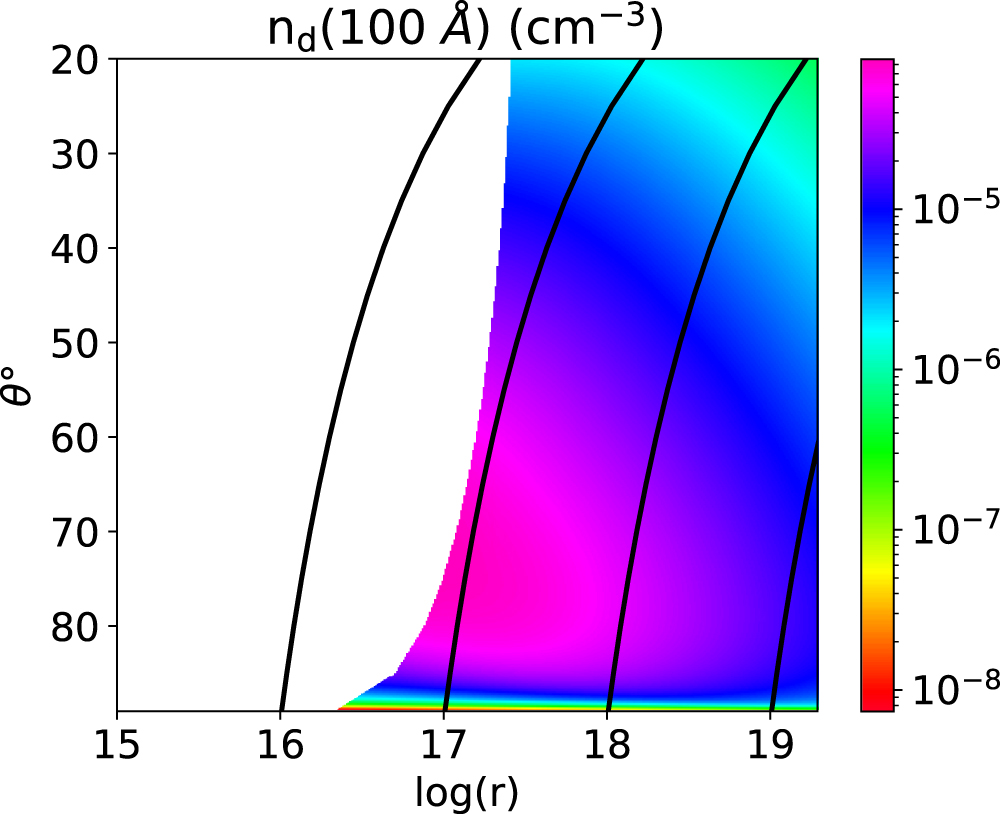

The color map shows the number density of 100 Å silicate grains in polar coordinates (r, θ). The white region is free of dust, as it is the boundary of the sublimation region. The black lines in the figure represent the parabolic flow lines with various starting/launch radii on the accretion disk, r₀.
