Figure 9 from Nonlinear Force-free Field Modeling of Solar Coronal Jets in Theoretical Configurations

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Nonlinear Force-free Field Modeling of Solar Coronal Jets in Theoretical Configurations

Authors: K. A. Meyer, A. S. Savcheva, D. H. Mackay, and E. E. DeLuca

2019 The Astrophysical Journal 880 62.

Provider: AAS Journals

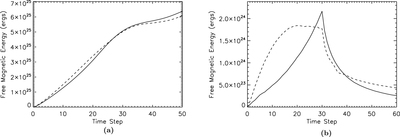

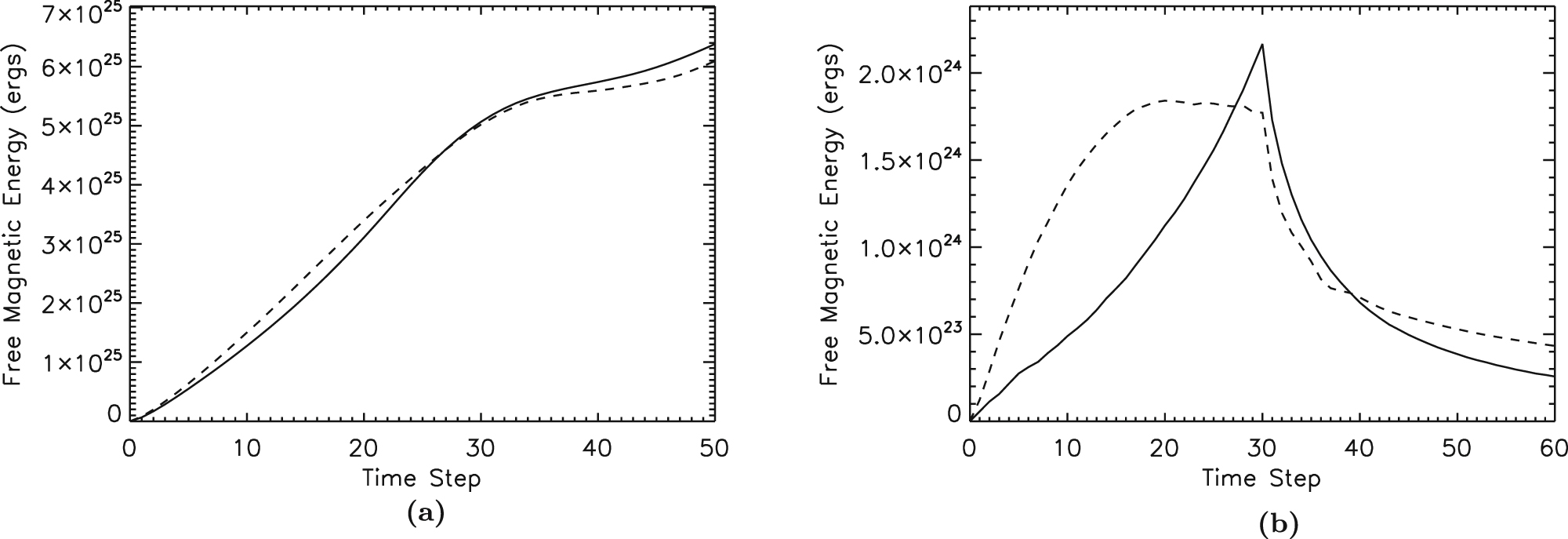

Caption: Figure 9.

Free magnetic energy as a function of time for (a) the FLYBY1 (solid line) and FLYBY2 (dashed line); and (b) EMERGE (solid line) and CANCEL (dashed line) simulations.
