Figure 4 from The Cosmic-Ray Ionization Rate in the Galactic Disk, as Determined from Observations of Molecular Ions

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

The Cosmic-Ray Ionization Rate in the Galactic Disk, as Determined from Observations of Molecular Ions

Authors: David A. Neufeld, and Mark G. Wolfire

2017 The Astrophysical Journal 845 163.

Provider: AAS Journals

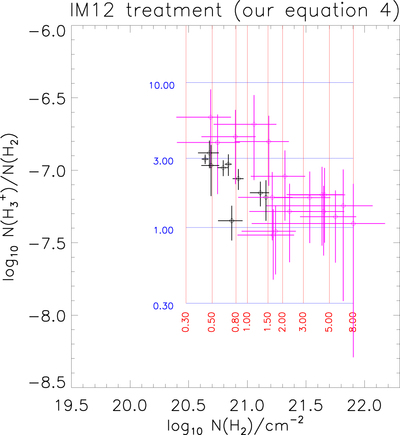

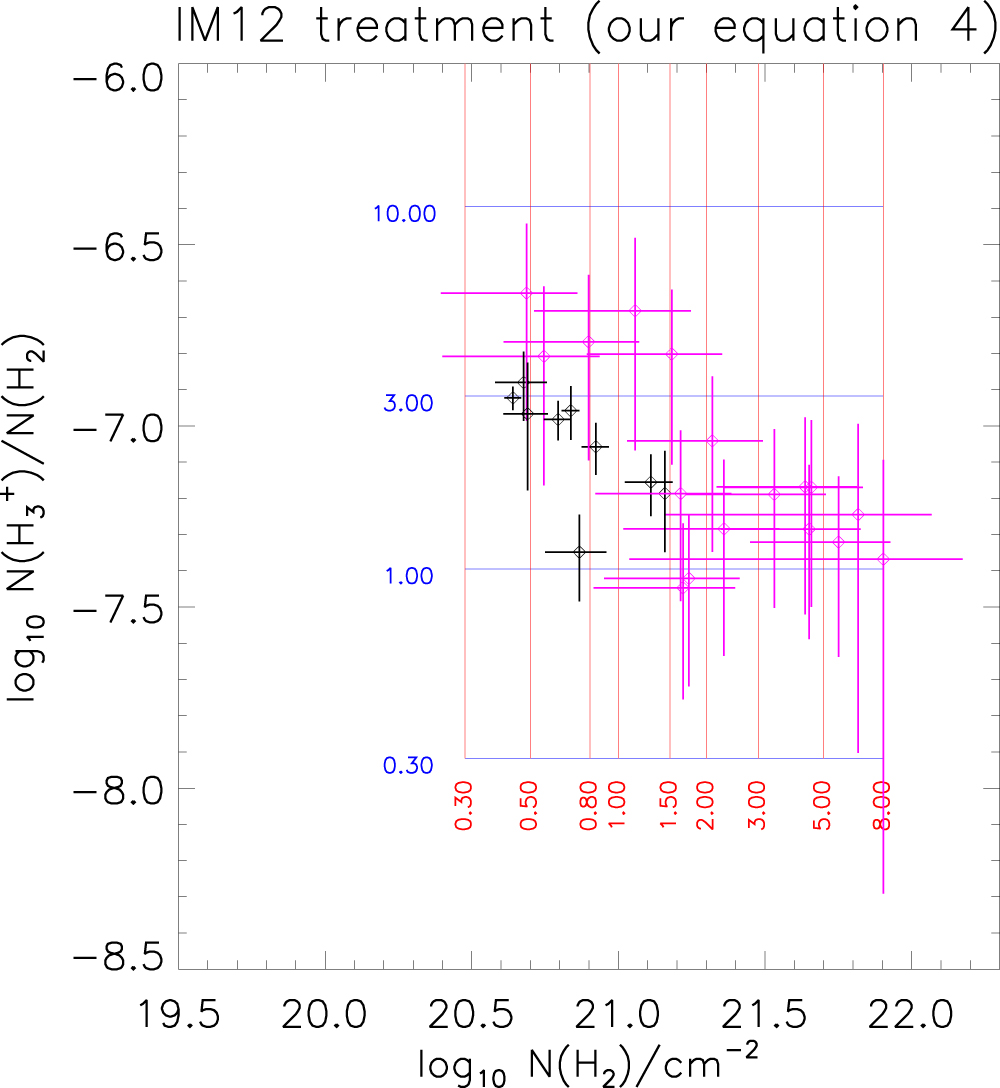

Caption: Figure 4.

Same as Figure 3, but with the column densities computed using the simple analytic approximations adopted by IM12. Here, we adopted a gas temperature of 70 K and assumed a molecular fraction of 1.0.
