Figure 2 from Compound Twin Coronal Mass Ejections in the 2012 May 17 GLE Event

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Compound Twin Coronal Mass Ejections in the 2012 May 17 GLE Event

Authors: C. Shen, G. Li, X. Kong, J. Hu, X. D. Sun, L. Ding, Y. Chen, Yuming Wang, and L. Xia

Shen et al. 2013 The Astrophysical Journal 763 114.

Provider: AAS Journals

Caption: Figure 2.

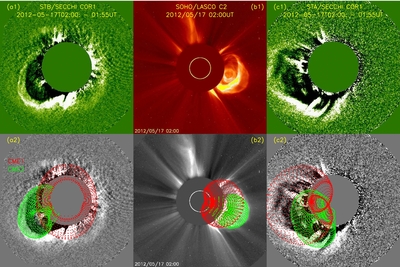

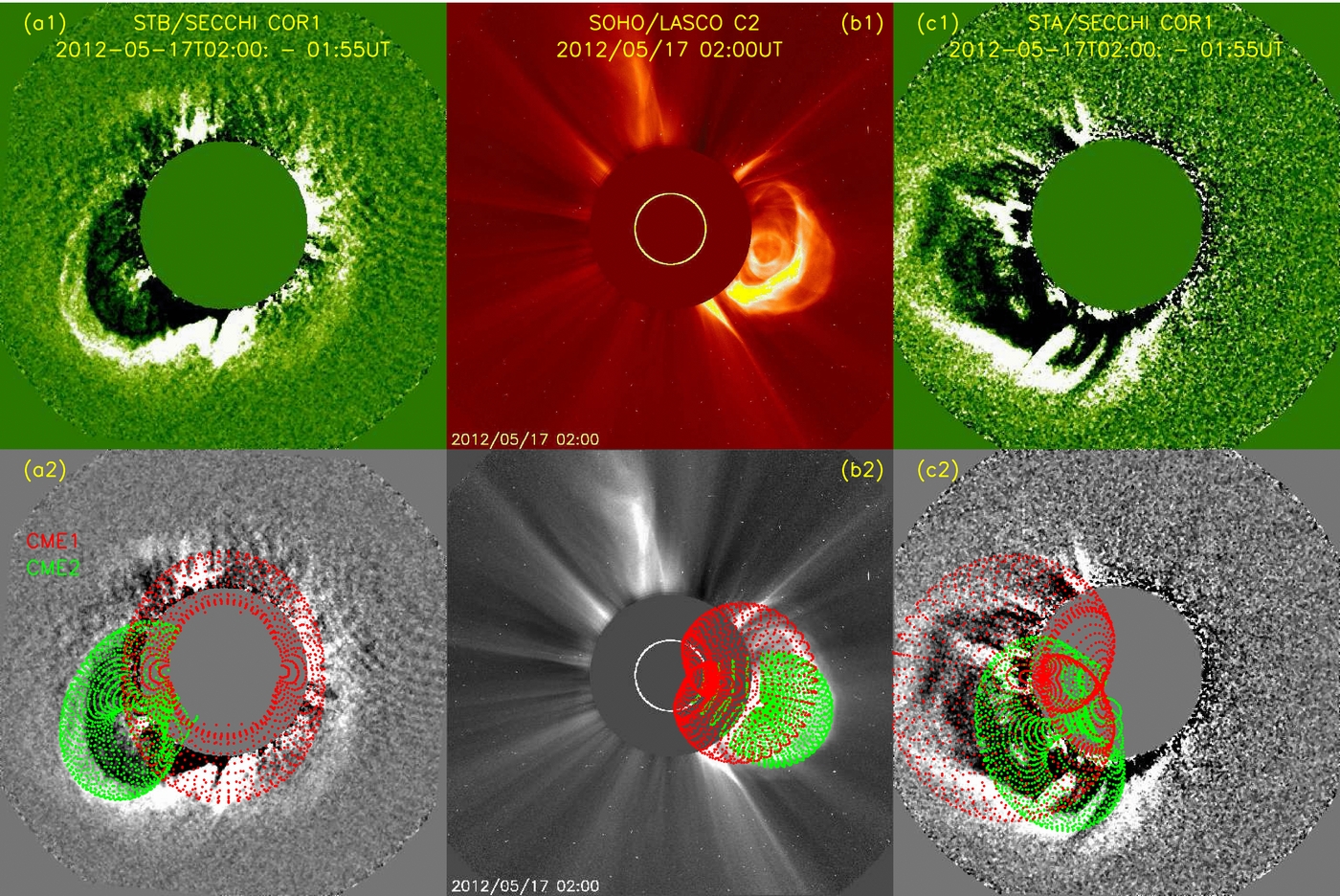

Construction of the two CMEs using the GCS model. The upper panel shows the observations by STEREO-B, SOHO, and STEREO-A. The lower panel shows the constructed two-CME flux ropes using the GCS model.
