Geometric Cross Sections of Dust Aggregates and a Compression Model for Aggregate Collisions

  • Authors: Toru Suyama, Koji Wada, Hidekazu Tanaka, and Satoshi Okuzumi

Suyama et al. 2012 The Astrophysical Journal 753 115.

  • Provider: AAS Journals

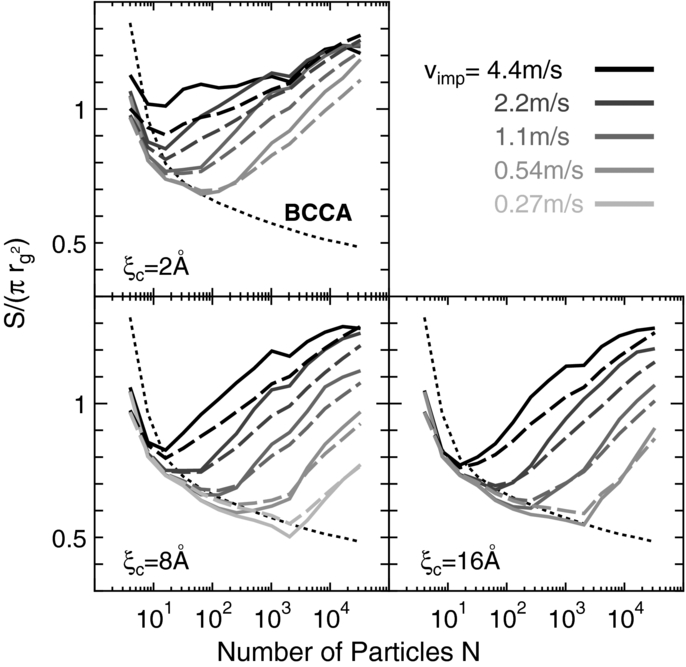

Caption: Figure 6.

Ratio of S to π r 2 g of growing aggregates in the simulations for various impact velocities and critical rolling displacements. The solid lines show the resultant aggregates in our simulations, and the dotted line indicates that of BCCA clusters. We also plot the cross sections obtained from Okuzumi et al.'s expression (Equation (7)) with dashed lines. Okuzumi et al.'s expression reproduces the cross sections well even for compressed aggregates.
