Toward a New Kind of Asteroseismic Grid Fitting

  • Authors: M. Gruberbauer, D. B. Guenther, and T. Kallinger

Gruberbauer, Guenther, & Kallinger 2012 The Astrophysical Journal 749 109.

  • Provider: AAS Journals

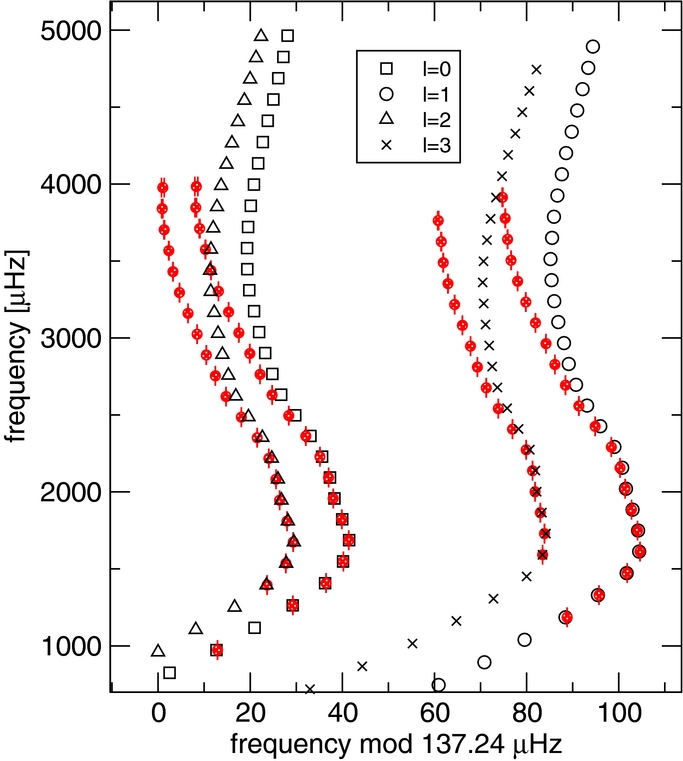

Caption: Figure 1.

Echelle diagram of solar p modes taken from Broomhall et al. (2009) (filled circles) and an appropriate solar model constructed using YREC. The higher-order model frequencies are increasingly deviating from the observations due to deficiencies in modeling the upper stellar layers. The systematic errors of the models are much bigger than the random observational uncertainties.
