Chromospheric Evaporation via Alfvén Waves

Authors: Gerhard Haerendel

HAERENDEL 2009 The Astrophysical Journal 707 903.

Provider: AAS Journals

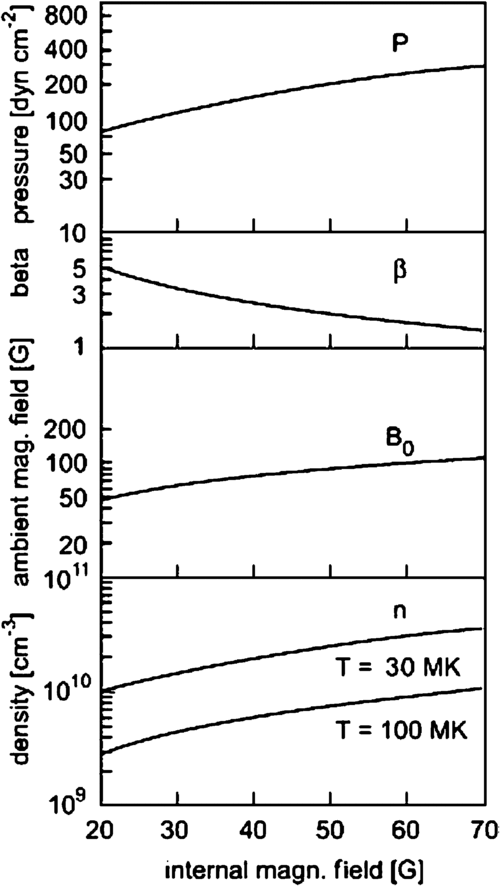

Caption: Figure 7.

Plasma pressure, p, plasma beta, β, external magnetic field, B ₀, and corresponding densities for two temperatures ( T _i = T _e ) of the loop-top plasma as a function of the internal magnetic field, B _i , as derived from Equation (6).
