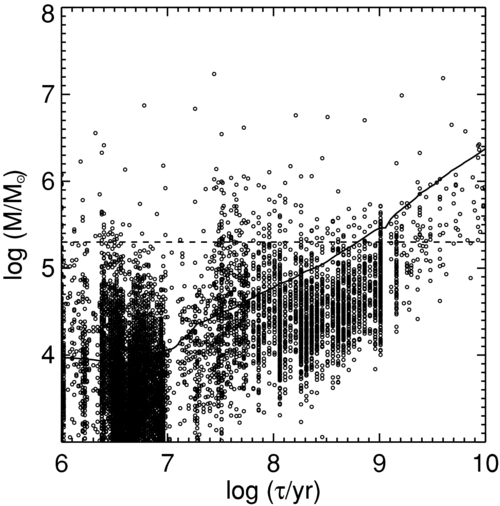

Caption: Figure 2.
Mass–age plane for the Antennae clusters. This is an alternative, but equivalent, representation of the data plotted in Figure 1. The lines in the two diagrams are also equivalent: the dashed horizontal one indicates M = 2 × 10 5 M ☉, while the solid diagonal one indicates L = 3 × 10 5 L ☉, the approximate upper limit for stellar contamination. The vertical gap in the data points just above τ = 1 × 10 7 yr is an artifact caused by loops in the color tracks of stellar population models during the RSG phase (see the text).
