Extended Lyα Nebulae at z ≃ 2.3: An Extremely Rare and Strongly Clustered Population?

  • Authors: Yujin Yang, Ann Zabludoff, Christy Tremonti, Daniel Eisenstein, and Romeel Davé

YANG et al. 2009 The Astrophysical Journal 693 1579.

  • Provider: AAS Journals

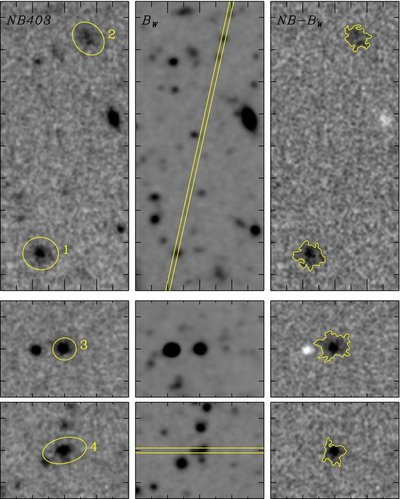

Caption: Figure 5.

Images of the four Lyα blob candidates. From left to right are the NB403, NDWFS BW, and continuum-subtracted (NBBW) images. The ticks are spaced every 10'', which corresponds to ~82 physical kpc at z = 2.3. The elliptical apertures used for photometry and blob identification are shown in the left panels. The BW images are smoothed to match the seeing of the NB images. In the right panels, the contours represent the surface-brightness limit of 5 × 10−18 erg s−1 cm−2 arcsec−2, within which we determine the blob sizes. The location of the 1farcs5-wide slit used for spectroscopic followup with the 6.5 m MMT is shown for Blobs 1, 2, and 3 in the BW image. We spectroscopically confirm that all four blobs lie at z = 2.3 (Figure 6). Blobs 3 and 4 are broad-line QSOs that are both detected in X-rays [LX(2–7 keV) = 1.6–4.1 × 1044 erg s−1]. None of the blobs are radio-loud.
