Determining Star Formation Rates for Infrared Galaxies

Authors: G. H. Rieke, A. Alonso-Herrero, B. J. Weiner, P. G. Pérez-González, M. Blaylock, J. L. Donley, and D. Marcillac

RIEKE et al. 2009 The Astrophysical Journal 692 556.

Provider: AAS Journals

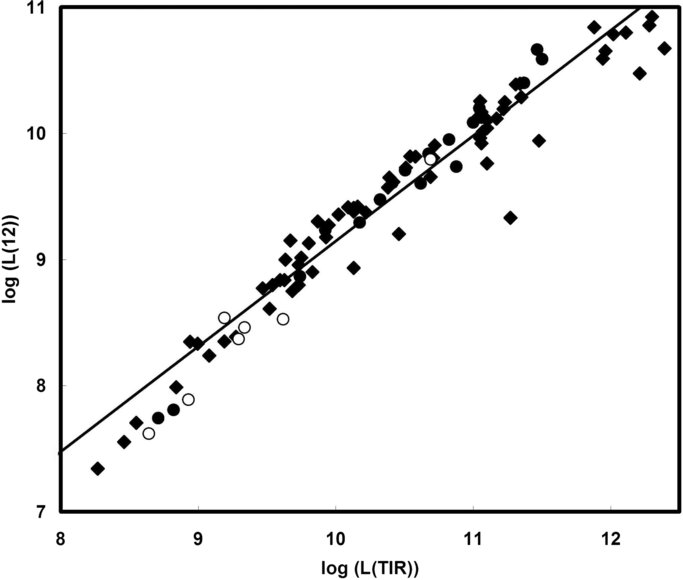

Caption: Figure 14.

Comparison of L(12) and L(TIR). The most deviant low point (NGC 1316) has been excluded from the fit. The slope is significantly different from one ( L(TIR) = 1.479 × 10 ⁻⁷ L(12) ^1.18) and there are indications of an overall curvature, with a lower ratio of L(12)/ L(TIR) at high luminosity. Symbols are as for Figure 13.
