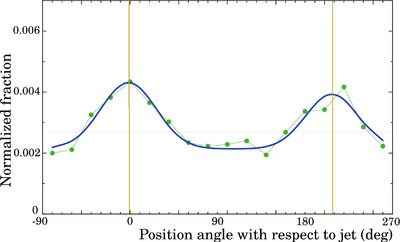

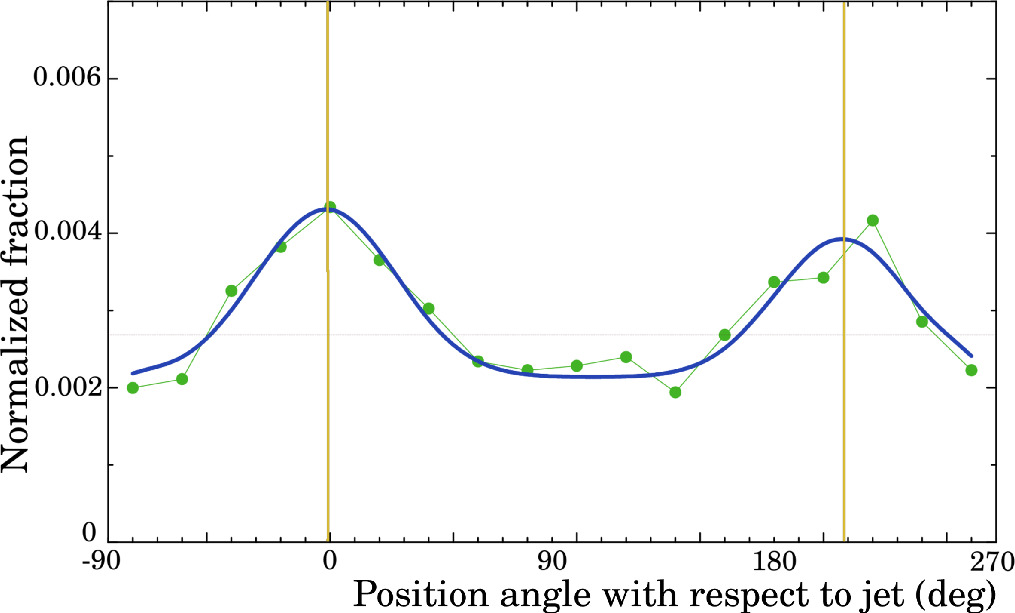

Caption: Figure 19.
The normalized distribution of the position angles of the differences in source coordinates derived from SX and K-band data counted from jet directions relative to the source coordinates derived from the K-band data solution (green circles). The solid blue line shows its fit with two Gaussians and a constant. The yellow vertical lines show the maxima. The thin dashed red line shows the uniform distribution.
