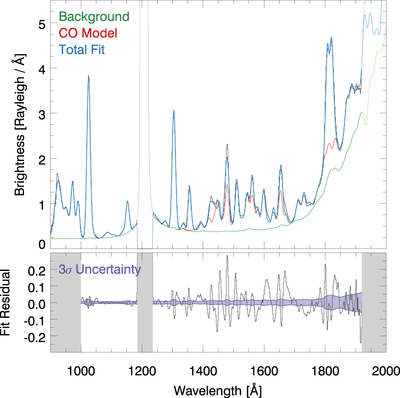

Fit to the grand sum of Alice exposures near perihelion. Top: the grand sum with background (green), CO model (red), and total (blue, includes atomic emissions) fits overlaid. Regions shown in lighter hues are not used to constrain the fits. Bottom: the residual of the total fit with 3σ uncertainty in the grand sum (purple) overlaid. Masked regions (shaded gray) are not used to set upper limits.
(The data used to create this figure are available.)
