The Apache Point Observatory Galactic Evolution Experiment (APOGEE)

Authors: Steven R. Majewski, Ricardo P. Schiavon, Peter M. Frinchaboy, Carlos Allende Prieto, Robert Barkhouser, Dmitry Bizyaev, Basil Blank, Sophia Brunner, Adam Burton, Ricardo Carrera, S. Drew Chojnowski, Kátia Cunha, Courtney Epstein, Greg Fitzgerald, Ana E. García Pérez, Fred R. Hearty, Chuck Henderson, Jon A. Holtzman, Jennifer A. Johnson, Charles R. Lam, James E. Lawler, Paul Maseman, Szabolcs Mészáros, Matthew Nelson, Duy Coung Nguyen, David L. Nidever, Marc Pinsonneault, Matthew Shetrone, Stephen Smee, Verne V. Smith, Todd Stolberg, Michael F. Skrutskie, Eric Walker, John C. Wilson, Gail Zasowski, Friedrich Anders, Sarbani Basu, Stephane Beland, Michael R. Blanton, Jo Bovy, Joel R. Brownstein, Joleen Carlberg, William Chaplin, Cristina Chiappini, Daniel J. Eisenstein, Yvonne Elsworth, Diane Feuillet, Scott W. Fleming, Jessica Galbraith-Frew, Rafael A. García, D. Aníbal García-Hernández, Bruce A. Gillespie, Léo Girardi, James E. Gunn, Sten Hasselquist, Michael R. Hayden, Saskia Hekker, Inese Ivans, Karen Kinemuchi, Mark Klaene, Suvrath Mahadevan, Savita Mathur, Benoît Mosser, Demitri Muna, Jeffrey A. Munn, Robert C. Nichol, Robert W. O'Connell, John K. Parejko, A. C. Robin, Helio Rocha-Pinto, Matthias Schultheis, Aldo M. Serenelli, Neville Shane, Victor Silva Aguirre, Jennifer S. Sobeck, Benjamin Thompson, Nicholas W. Troup, David H. Weinberg, and Olga Zamora

2017 The Astronomical Journal 154 94.

Provider: AAS Journals

Caption: Figure 13.

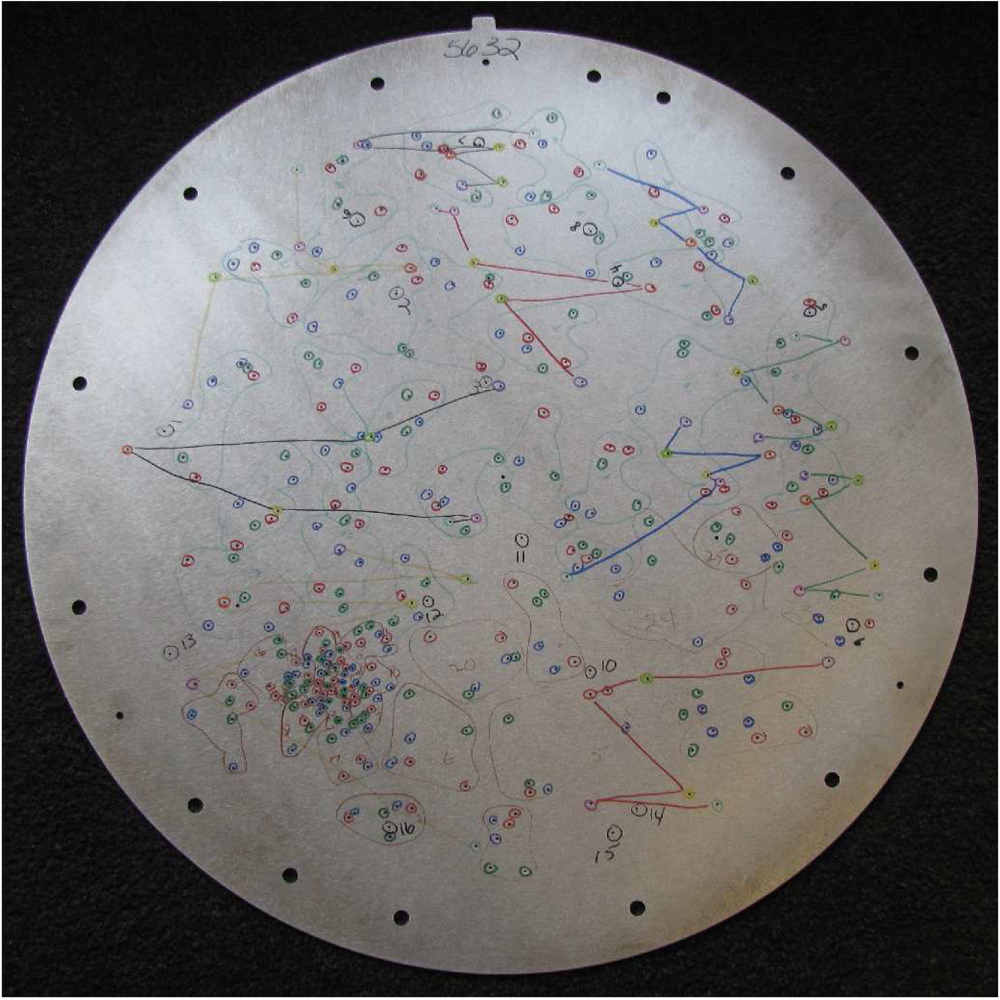

Photo of a shared APOGEE/MARVELS plugplate (plate #5632), as marked for plate plugging. This particular plate is for a field featuring the globular cluster M3, whose position on the plate can be identified by the concentration of fiber holes to the lower left. The holes connected by the zigzagging tracings mark those associated with MARVELS, whereas the red, green, and blue circled holes show those intended for the bright, medium, and faint APOGEE fibers, respectively. The latter holes are grouped into small “zones” (indicated by the irregularly shaped, closed loops) by the pluggers as a way to organize areas on the plate anticipated to be serviced by fibers in a single anchor block (having two red, two green, and two blue fibers each). (Photo by W. Richardson.)
