The Ionizing Stars of the Galactic Ultra-Compact H II Region G45.45+0.06

  • Authors: Robert D. Blum and Peter J. McGregor

BLUM & McGREGOR 2008 The Astronomical Journal 135 1708.

  • Provider: AAS Journals

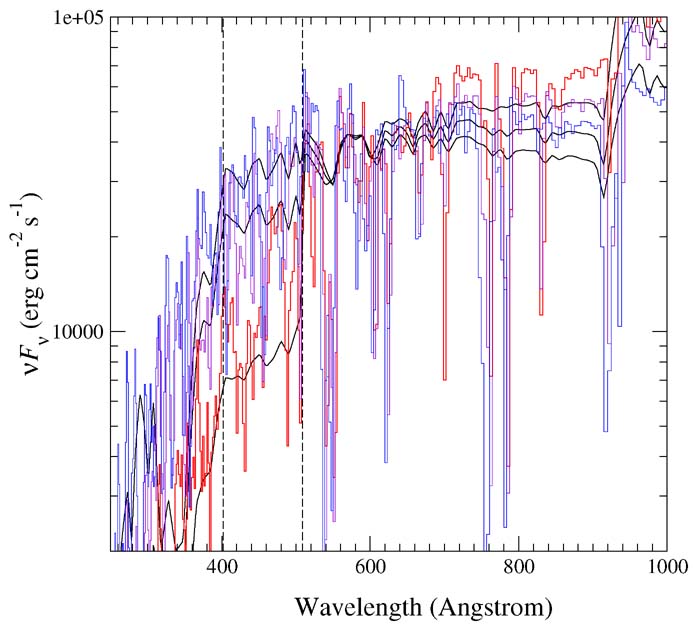

Caption: Figure 10.

Kurucz model atmosphere (Castelli & Kurucz 2004, black solid lines) and WMBASIC (Pauldrach et al. 2001, colored histograms) incident continua for 36,000 K, 42,000 K, and 46,000 K hot stars. The vertical dashed lines correspond to the ionization potentials of Kr ii and Se iii. The higher T eff models appear to have significant numbers of ionizing photons in the spectral regions required to produce Kr iii and Se iv; see the text. All spectra are normalized to the same total number of ionizing photons (log(Q) cm −2 s −1 = 15). Both model sets show significant numbers of ionizing photons in the range required to produce Kr iii and Se iv for the hotter stars. The cooler stars show a precipitous drop in ionizing photons.
