Caption: Fig. 9.

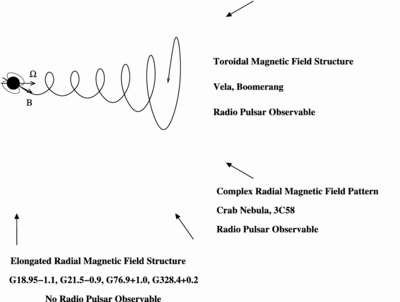

Sketch of the expansion of the magnetic field lines from the central pulsar. Three different viewing angle directions, with changing appearance of the PWNe are indicated. The magnetic field axis and the spin axis of the pulsar are marked by B and Ω, respectively.
