The Three‐dimensional Circumstellar Environment of SN 1987A

Authors: Ben E. K. Sugerman, Arlin P. S. Crotts, William E. Kunkel, Stephen R. Heathcote, and Stephen S. Lawrence

Sugerman et al. 2005 The Astrophysical Journal Supplement Series 159 60.

Provider: AAS Journals

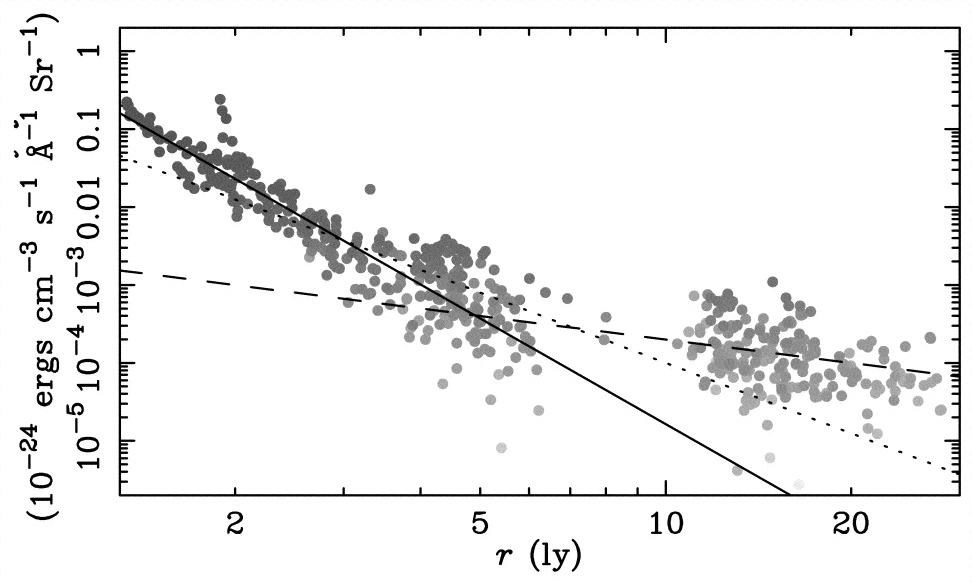

Caption: Fig. 45.

Flux density of scattered light per unit volume as a function of three‐dimensional radius from the SN, measured for each echo in the F612 filter. Points are shaded in proportion to their signal‐to‐noise, which increases with darker gray scale. Lines are plotted as follows: ﹩j\propto r^{-1}﹩ (dashed), ﹩j\propto r^{-3}﹩ (dotted), ﹩j\propto r^{-4.5}﹩ (solid).
