Fig. 40 from The Three‐dimensional Circumstellar Environment of SN 1987A

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

The Three‐dimensional Circumstellar Environment of SN 1987A

Authors: Ben E. K. Sugerman, Arlin P. S. Crotts, William E. Kunkel, Stephen R. Heathcote, and Stephen S. Lawrence

Sugerman et al. 2005 The Astrophysical Journal Supplement Series 159 60.

Provider: AAS Journals

Caption: Fig. 40.

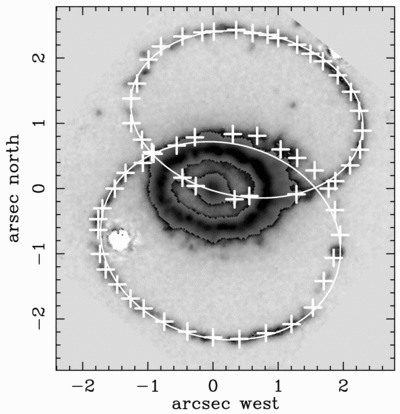

Full WFPC2 image of the three rings, from which Fig. 37 is taken. To increase the display range, brighter pixels are displayed with a separate color stretch. Heavy crosses show the positions of the rings as measured through radial profiles. The best‐fit planar ellipses to these points are traced by thin, solid lines.
