The Three‐dimensional Circumstellar Environment of SN 1987A

Authors: Ben E. K. Sugerman, Arlin P. S. Crotts, William E. Kunkel, Stephen R. Heathcote, and Stephen S. Lawrence

Sugerman et al. 2005 The Astrophysical Journal Supplement Series 159 60.

Provider: AAS Journals

Caption: Fig. 27.

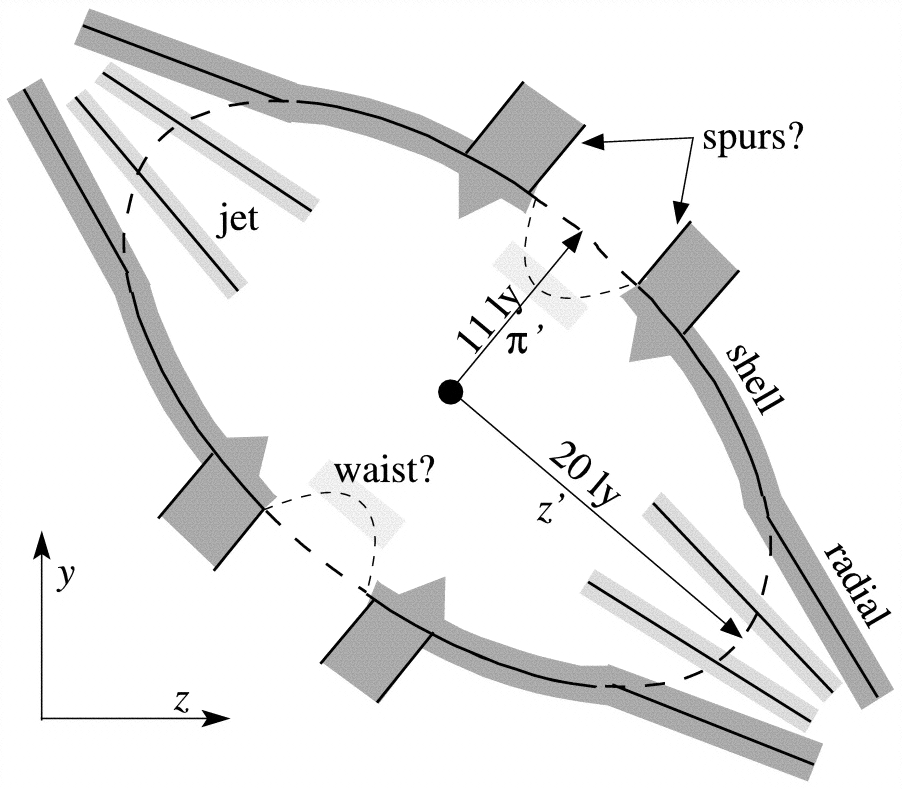

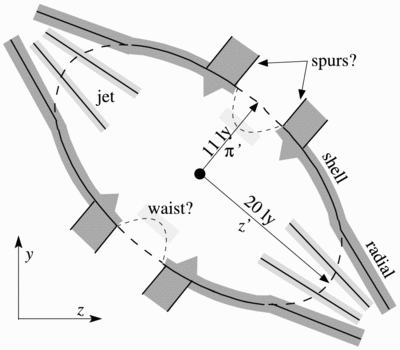

Cartoon sketch of the salient structures traced out by the CD model from Fig. 26. This figure is to scale, with the length of the two orientation arrows equal to 10 lt‐yr. Solid lines trace the average radial profiles, and the scatter above those profiles are indicated by the solid gray‐scale regions surrounding each line.
