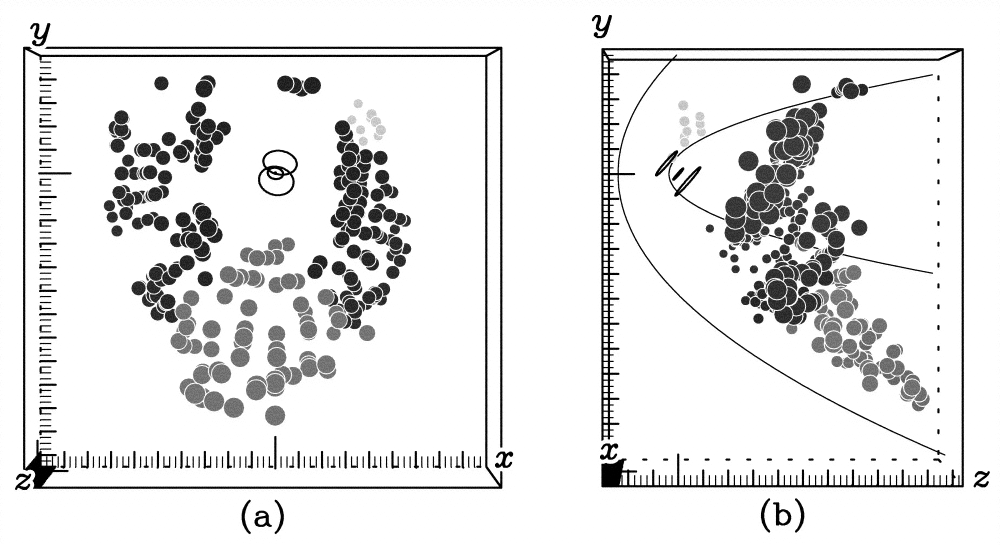

Same as Fig. 15a–15b, showing only the CD echoes, where now "shell" echoes are dark gray, "radial" echoes medium gray, and light gray points denote the WFPC2 echoes that are difficult to interpret (§ 6.1.1). The probable positions of the three rings (§ 8.3) are indicated in each panel.
