Magnetic Flux Tube Reconnection: Tunneling Versus Slingshot

Authors: M. G. Linton and S. K. Antiochos

Linton & Antiochos 2005 The Astrophysical Journal 625 506.

Provider: AAS Journals

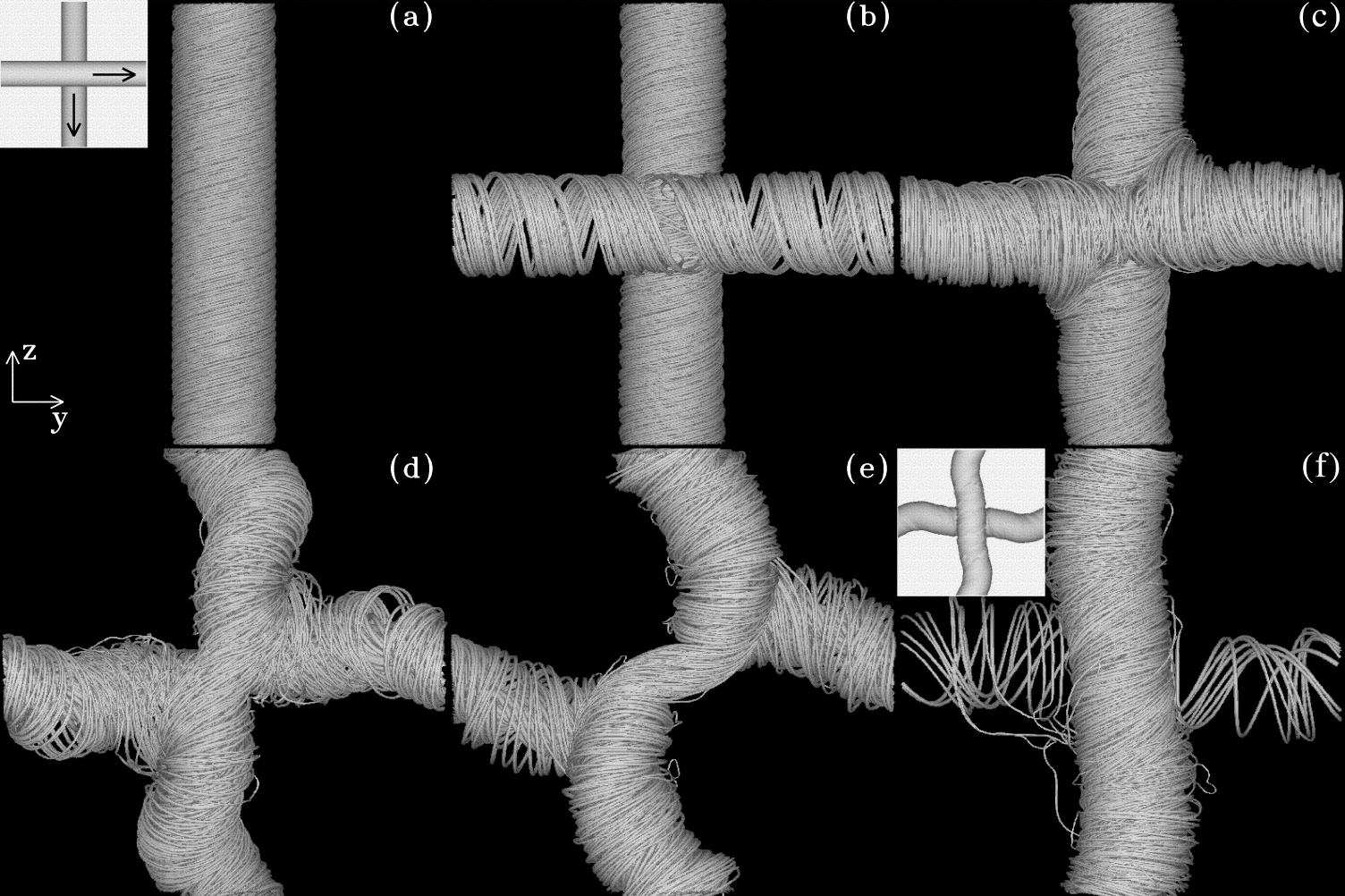

Caption: Fig. 7.

Field lines from simulation RR6 at ﹩\mathstrut{\cal T} =5.5﹩ and for a nonuniform Lunquist number with a maximum of 288,000. At this level of twist the tubes tunnel. The panels shown here are at times ﹩tv_{\mathrm{A}\,}/ R=[ 0,\ 14,\ 28,\ 46,\ 79,\ 159] ﹩.
