Fig. 13 from Magnetic Flux Tube Reconnection: Tunneling Versus Slingshot

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Magnetic Flux Tube Reconnection: Tunneling Versus Slingshot

Authors: M. G. Linton and S. K. Antiochos

Linton & Antiochos 2005 The Astrophysical Journal 625 506.

Provider: AAS Journals

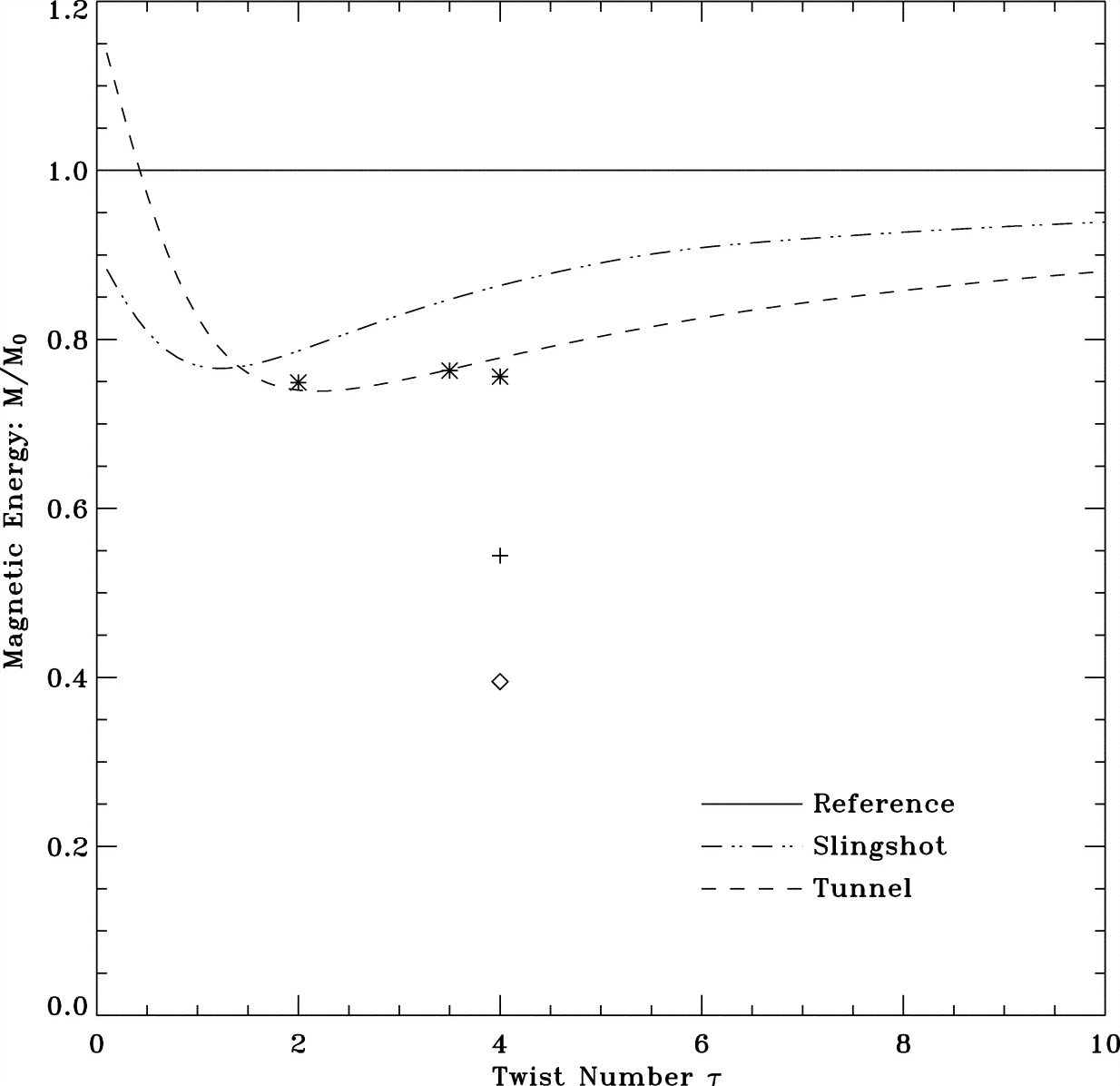

Caption: Fig. 13.

Theoretical reconnection energy, as in Fig. 5, for RR7 simulations. The asterisks denote simulation values for slingshot interactions, while the plus sign denotes the simulation value for the tunnel interaction of Fig. 15e, and the diamond denotes the simulation value for the merge interaction of Fig. 15f.
