The Variable Radio Source T Tauri

  • Authors: K. J. Johnston, R. A. Gaume, A. L. Fey, C. de Vegt, and M. J Claussen

Johnston et al. 2003 The Astronomical Journal 125 858.

  • Provider: AAS Journals

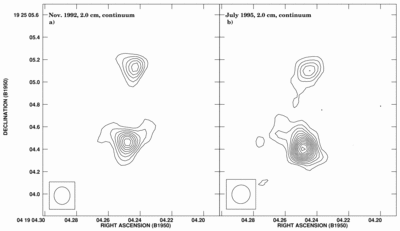

Caption: Fig. 2.

(a) The 2 cm radio emission from T Tau on 1992 November 17. This map has been CLEANed and restored with a beam of 0﹩\farcs﹩16 × 0﹩\farcs﹩14, P.A. 0°. The peak flux density is 2.63 mJy beam−1. The contour levels are −20, 20, 30, 40, 50, 60, 70, 80, 90, 100, 110, 120, 130, and 140 times 0.014 mJy beam−1. Note how well the components are now separated. (b) The 2 cm emission on 1995 July 14. The peak flux density is 2.03 mJy beam−1. The synthesized beam is 0﹩\farcs﹩17 × 0﹩\farcs﹩16, P.A. −27°. The contour levels are the same as in (a).
