Crossing the Yellow Void: Spatially Resolved Spectroscopy of the Post–Red Supergiant IRC +10420 and Its Circumstellar Ejecta

Authors: Roberta M. Humphreys, Kris Davidson, and Nathan Smith

Humphreys, Davidson, & Smith 2002 The Astronomical Journal 124 1026.

Provider: AAS Journals

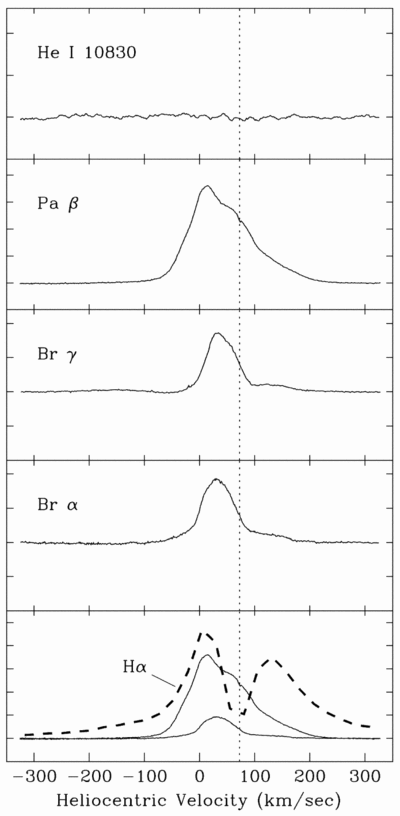

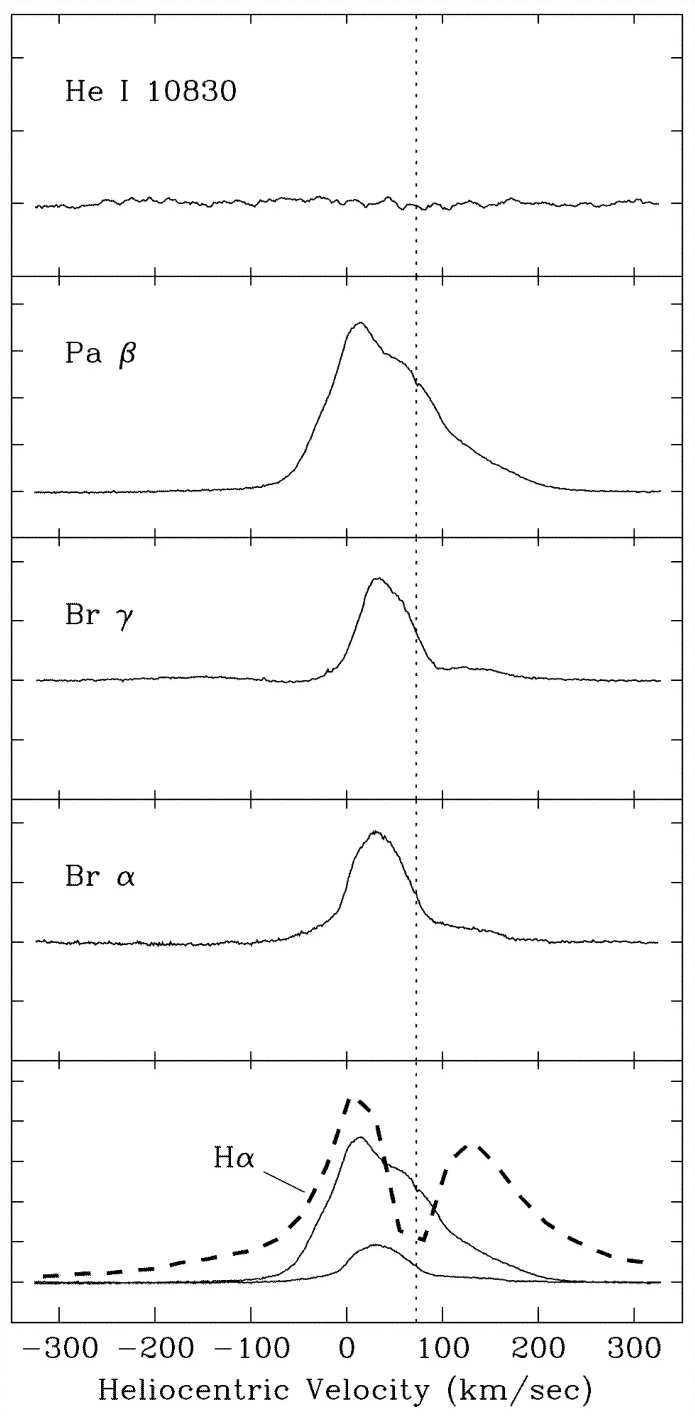

Caption: Fig. 8.

Line profiles of near‐IR emission lines observed with PHOENIX on the KPNO 4 m telescope. The presumed heliocentric radial velocity of +73 km s⁻¹ is shown by the dotted vertical line in each panel. The bottom panel compares near‐IR hydrogen line profiles observed with PHOENIX with the Hα profile of the central star observed with HST/STIS (dashed line).
